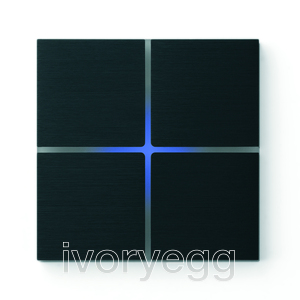

Basalte Sentido CresNET 4 Button Switch in Brushed Black

BASALTE 0200-03/0202-03

Basalte Sentido CresNET 4 Button Switch in Brushed Black

Product code: 0200-03/0202-03

Finishes:

The Sentido keypad is a four button touch keypad that can be part of a Crestron¨ solution total control system. The Sentido keypad is a standard Cresnet¨ device, which can be programmed using SIMPL Windows. Touching a touch sensitive area will give a visual feedback by means of lighting up the central RGB Led. The central RGB Led can also be controlled over Cresnet¨ to provide a visual feedback of statuses. The Led can be used to illuminate the switch in the dark as well. The Sentido keypad uses the patented Multitouch technology. Touching more than one touch sensitive area at the same time activates an additional comfort function._

Description

The Basalte Sentido keypad has 4 touch sensitive areas.

Each of the 4 sensors can have the following action:

Disabled
Only Short Press
Short and Long Press

When more than one sensor is touched at the same time, the Multitouch function is executed. This function can be used for additional comfort functions. Available functions for Multitouch are:

Disabled
Only Short Press
Short and Long Press
Scene Sequencer
RGB Sequencer

Each Basalte Sentido keypad has a temperature sensor to report the ambient temperature on the Cresnet bus.

In SIMPL Windows, a ÔBasalte Sentido ConfigurationÕ module is used for every Sentido keypad in the project, to define the functionality for all sensors, the Multitouch and temperature.

Handmade in Belgium, Sentido for Cresnet¨ switches are manufactured and validated under the Crestron¨ Integrated Partner Program.

Scope of supply includes Cresnet¨ interface, switch electronics and frame

Technical Details

Specification

4 single touch surfaces
1 multi-touch functionality
Integrated scene sequencer and RGB sequencer
Multicolour LED backlight
Temperature sensor with integrated thermostat logic
Bus Coupler 200-02 for KNX is required

Properties

Technology	Other Control
Brand	BASALTE
Colour/Material	Black
Finish	Brushed Black
Switch action	Capacitive Touch
Operating voltage	CRESNET Bus (24VDC)
HVAC support	Temperature Sensing
Status LED's	Fixed RGB Colours
Buscoupler	Included
IP rating	IP20
