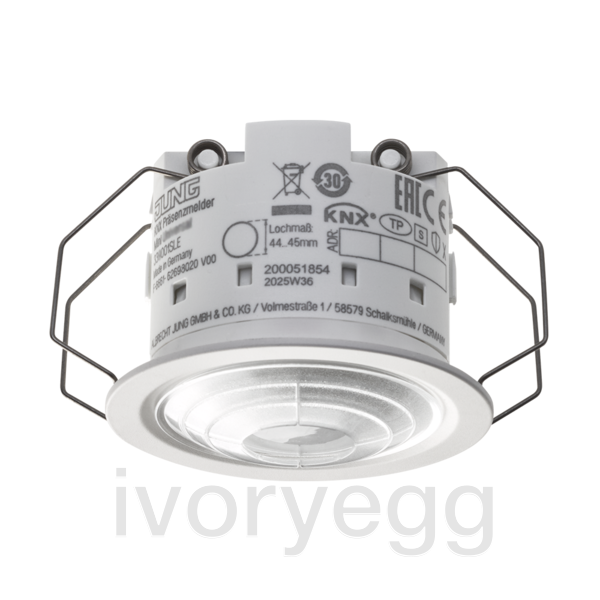

KNX presence detector mini with temp, Standard, Secure, IP 44, 3m, light lens, white

Description

Intended use

• Operation in KNX system
• Control of lighting, room thermostats and other electrical loads
• Measurement of room temperature
• Ceiling installation in interiors and exteriors
• Clamp mounting in suspended ceilings
• Ceiling installation on fixed ceilings in flush box with dimensions according to DIN 49073 with flush mounting set (ref.-no.: PMM-UP-SET-..)
• Surface-mounted ceiling installation with surface mounting set (ref.-no.: PMM-AP-SET-..)

Product characteristics

• Integrated bus coupling unit
• 1 PIR sensor
• Detection field 360°
• Integrated brightness sensor
• Brightness sensor function with limiting value
• Internal temperature sensor
• Deployed as presence detector, motion detector, or monitoring device
• Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
• Detection area extendible by parallel switching of several devices as main unit or extension unit
• Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
• 3 function blocks for motion detection each with 2 outputs
• Function blocks switchable, e.g. for day/night operation

Motion detector – lighting

• Motion detection for passageways in buildings
• Switch on: Motion detection and brightness threshold not reached
• Switch off: No motion in the detection field and run-on time elapsed
• After reacting and switching on, the motion detection works independently of the brightness.

Presence detector – lighting

• Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
• Switch off: No motion in the detection field and run-on time elapsed or brightness threshold exceeded

Presence detector – monitoring (monitoring / alarm / signalling mode)

• Brightness-independent detection of motions in the detection field
• Switch on: After detection of an adjustable number of motions within the set monitoring period

Spare part:
Push-on cover ref.-no.: 3361-1M-DB
