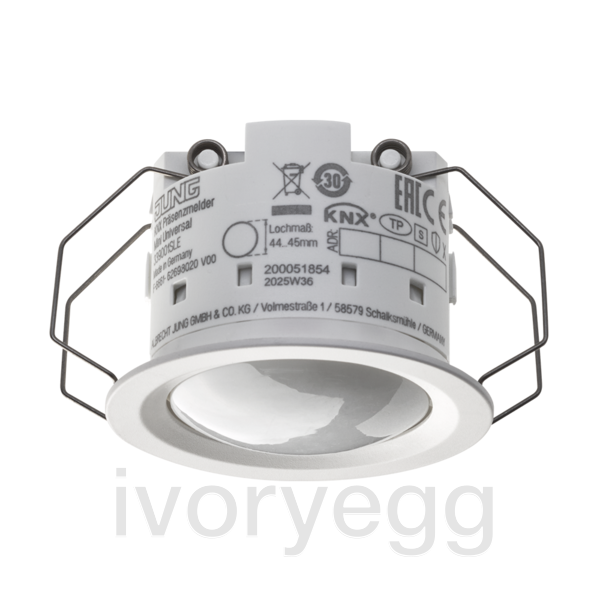

JUNG 339001SLE

KNX presence detector mini with temp and humidity, Universal, Secure, IP 44, 3m, light lens, white

Product code: 339001SLE

Intended use

Operation in KNX system
Control of lighting, room thermostats and other electrical loads
Measurement of room temperature
Measurement of room humidity
Ceiling installation in interiors and exteriors
Clamp mounting in suspended ceilings
Ceiling installation on fixed ceilings in flush box with dimensions according to DIN 49073 with flush mounting set (ref.-no.: PMM-UP-SET-..)
Surface-mounted ceiling installation with surface mounting set (ref.-no.: PMM-AP-SET-..)

Product characteristics

Integrated bus coupling unit
3 PIR sensors
PIR sensors can be evaluated separately
Detection field 360°
Integrated brightness sensor
Brightness sensor function with 3 limiting values
Internal temperature sensor
Integrated humidity sensor
Deployed as presence detector, motion detector, or for alert operation
Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
Extension of the detection area by way of operating several devices as main unit or extension unit
Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
5 function blocks for motion detection each with 2 outputs
Function blocks switchable, e.g. for day/night operation
Daylight-dependent light control with max. 3 channels, setpoint adjustment during operation, separate configuration of dimming-up, control and dimming-down phase
Light control can be combined with presence detector function
Calculation of dew point temperature
Orientation LED

Motion detector – lighting

Motion detection for passageways in buildings
Switch on: Motion detection and brightness threshold not reached
Switch off: No motion in the detection field and run-on time elapsed
After reacting and switching on, the motion detection works independently of the brightness.

Presence detector – lighting

Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
Switch off: No motion in the detection field and run-on time elapsed or brightness threshold exceeded

Presence detector – monitoring (monitoring / alarm / signalling mode)

Brightness-independent detection of motions in the detection field
Switch on: After detection of an adjustable number of motions within the set monitoring period

Spare part:
Push-on cover ref.-no.: 3361-1M-DB

Technology	KNX
Brand	JUNG
