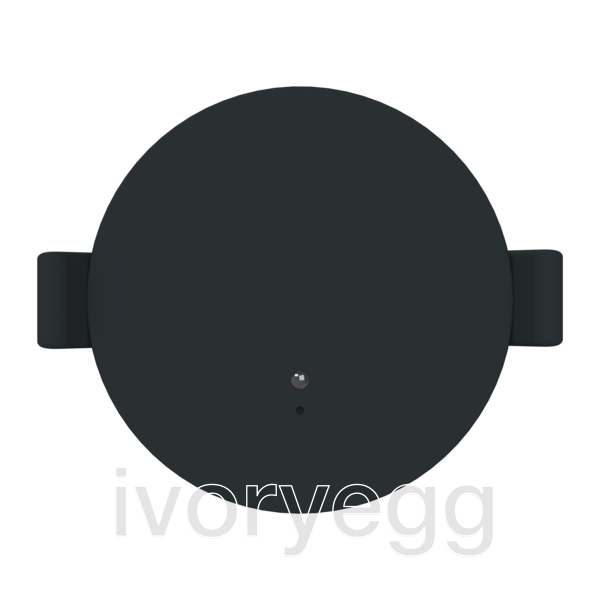

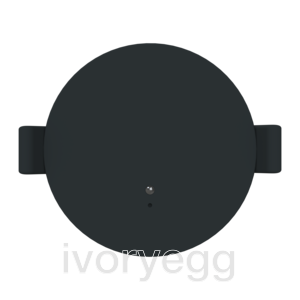

ABB BMH/U2.1.1-885

Busch-Watchdog HF KNX 1.75° Presence Detector black matt

Product code: 2TYZ510205G0701

Movement Detector HF KNX, Basic, black. Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Ø: max. 10 m, max. 12 m and max. 10 m.

5,8 GHz HF technology.
With 2 channels and integrated brightness, temperature and humidity sensor.
Detectors application with 2 power off stages.
Detectors application with integrated monitoring function.
Constant light switch with up to two independent channels.
Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area.
With integrated KNX bus coupler.
Suitable for false ceilings (Hole size: Ø 68 mm), surface mounting installation in combination with PMA/A1.xx-88x or in British Standard (PMA/K2.1-88x) or VDE flush-mounted box (PMA/K1.xx.-88x).
