ABB
JRA/S8.24.2.2

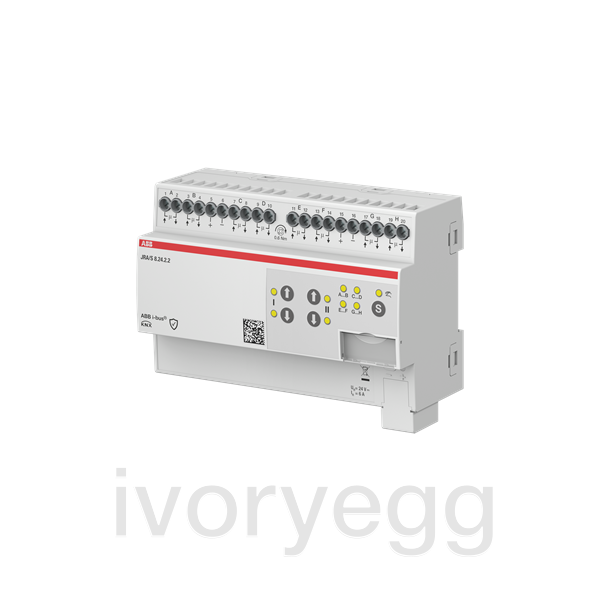

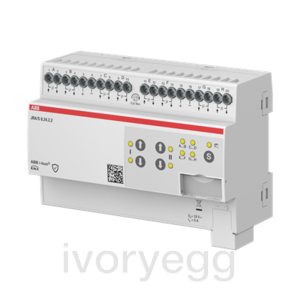

Blind/Roller Shutter Actuator, 8-fold, 24 V DC, Manual Operation, MDRC
Product code:
2CDG110297R0011
For the control of independent 24 V DC motors via ABB i-bus® KNX. The device is designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. Push-buttons are located at the front of the device to control the outputs e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected.
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | ABB |
| Mounting | DIN Rail |
| Operating voltage | KNX Bus (29VDC) |
| Output Voltage | 230VAC |
| IP rating | IP20 |
| Mounting Width | 8MW |
| KNX Secure | Yes |
