ABB
M2249-2B

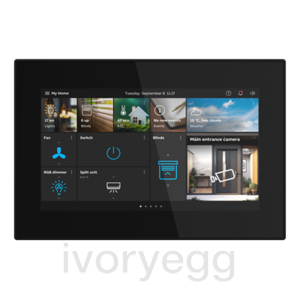

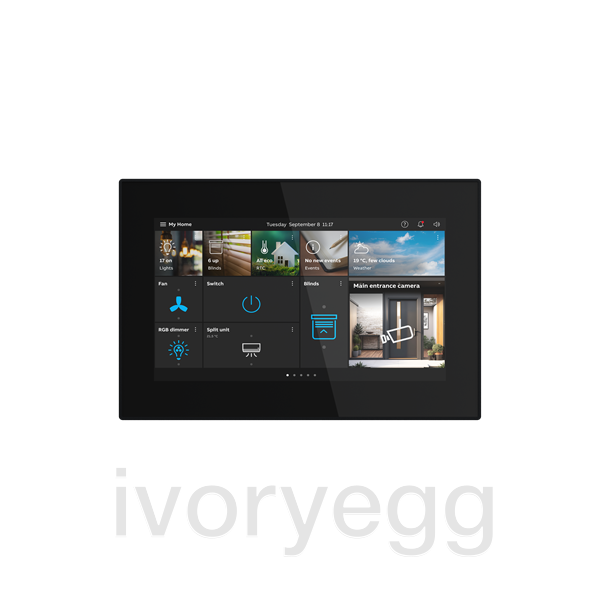

OneTouch 7, LAN + Wi-Fi, black
Product code:
2TMA320051B0001
Central Control Panel for ABB-Welcome® (2-Wire) and ABB-free@home
Description
Control, monitor, and manage your entire system with one device: switching, dimming, sliders, blinds, RGBW control, step switch, scene switch, display element, and audio control.
Free@home Functions:
- Integrated System Access Point for a purely free@home wireless system.
- Allows commissioning and remote control of a ABB-free@home® wireless system.
- Supports up to 150 free@home wireless devices.
- Comes with an integrated free@home wireless antenna.
- Free@home commissioning is done via a web interface or app.
- No additional commissioning software is required.
- Easy free@home commissioning through Wi-Fi ad hoc mode.
- Connects to the home network via Wi-Fi client mode or using a CAT cable (LAN adapter 5249C needed).
- More information on free@home commissioning and operation can be found in the system manual and online user guide.
- Can also be used as a standalone free@home panel in combination with an external System Access Point.
- The integrated System Access Point is not used when paired with an external System Access Point.
- Comes with an integrated room temperature controller and temperature sensor.
- Displays the video feed from the outdoor station.
- During conversations, a photo of the visitor can be captured and stored in memory.
- Three photos of the visitor are automatically stored in memory when door calls occur in your absence.
- Different ringtones can be set for door and floor calls, with five polyphonic tones available.
- Adjustable ringtone volume.
- Equipped with a hearing loop to feed the audio signal into hearing aids.
- Features a hands-free function with adjustable volume.
- Allows integration of ONVIF IP cameras.
- For integration into the myBuildingPortal.
App integration:
- Enables the integration of a tablet or smartphone with installed OneApp/free@home next APP or Welcome App as a mobile indoor station for audio and video communication.
- Enables the integration of tablet or smartphone with installed OneApp/free@home next APP for remote control of the free@home wireless system
Technical Details
Specification
Power Supply:
- Via Busch-Welcome 2-wire bus
- Alternatively, Power-over-Ethernet (PoE IEEE 802.3) or external power supply 20-32 VDC (SELV).
- Rated current: 400mA (24V DC).
- Screen size: 7"
- Display resolution: 1024x600
- Screen: IPS
- Dimensions (L x W x D): 128mm x 192mm x 17.5mm
- For flush mounting with 42491F
- For surface mounting with 42491S-x
- For Desktop mounting with 83506
Properties
Properties
| Technology | Wireless Control |
| Brand | ABB |
