ABB
N2118.6 AP

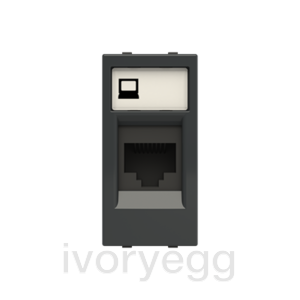

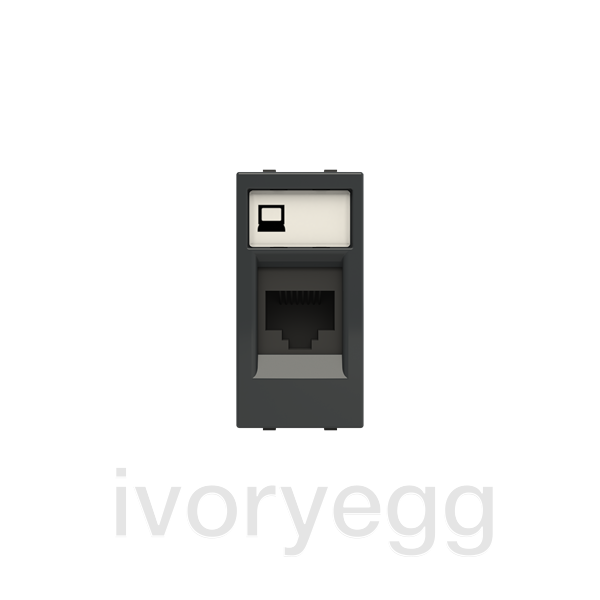

Data outlet Anthracite Polished - Zenit BS
Product code:
2CLA211860B1001
Technical Details
Specification
RJ45 type connector
Cat.6 - 8 pole
UTP (Unshielded Twisted Pair)
Housing: ABS+PC, UL 94V-0.
Max. data speed: 250MHz/1Gbps/100m (10Gbps at 37-55m)
Durability: 750 cycles (at least)
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over nickel
plated on contact area.
Standard: ANSI/TIA/EIA 568B.2, ISO/IEC11801 & EN50173.
Tool-less wiring.
Combine with any 22x44 or 44x44 multi frames
Properties
Properties
| Technology | Standard Electrics |
| Brand | ABB |
