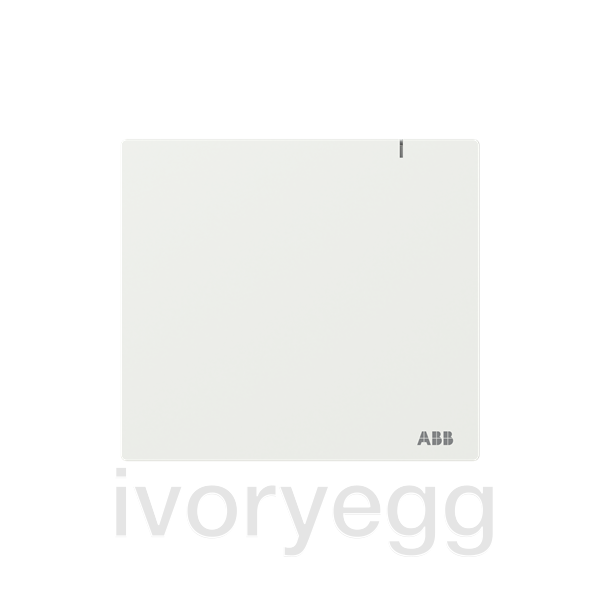

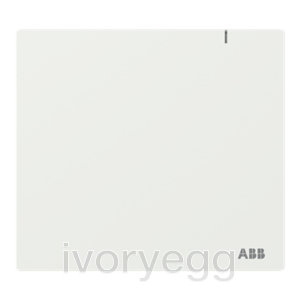

free@home System Access Point 3.0
Description
For commissioning and remote control of the ABB-free@home® system. Support for up to 150 free@home participants (independent of whether wireless or wired). With integrated free@home wireless antenna. With integrated free@home bus connection. Easy to mount thanks to the external USB-C Power Supply (included in the scope of delivery). Optional supply via the yellow/white twisted pair of the bus line (24 V). Allows the execution of astro and time programs. Commissioning and remote control is executed via the web interface or app. No additional commissioning software is required. Easy commissioning with WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. Suitable for wall mounting. 2 x USB ports for future extension of functions. 2.4 GHz and 5 GHz WLAN 1.4 GHz dual core processor 1 GB internal memory Scope of delivery: Mounting plate, USB-C Power Supply. The bus connection is provided via the enclosed bus terminal.
Technical Details
Specification
Power Supply: 230 V AC, 70 mA, 50/60 Hz
Screw terminals: 2 x 2.5 mm2 rigid, 2 x 1.5 mm2 flexible
Bus voltage: 24 V DC via separate power supply PS-M-64.1.1
Bus subscribers: 1 (12mA)
Connection: Bus connection terminal: 0.4 - 0.8 mm
Line type: J-Y(St)Y, 2 x 2 x 0.8 mm
Wire stripping: 6 - 7 mm
RJ connector: RJ-45
Protection: IP20
Ambient temperature: -5C - +45C
Storage temperature: -20C - +70C
Wireless (WL)
Transmission protocol: free@home wireless
Transmission frequency: 2.400 - 2.483 GHz
Maximum transmission power WL (wireless): < 15 dBm
WLAN
WLAN standard: IEEE 802.11 b/g/n
WLAN frequency range: 2.400 - 2.483 GHz
Maximum transmission power, WLAN: < 20 dBm.
Properties
Properties
| Technology | Other Control |
| Brand | ABB |
