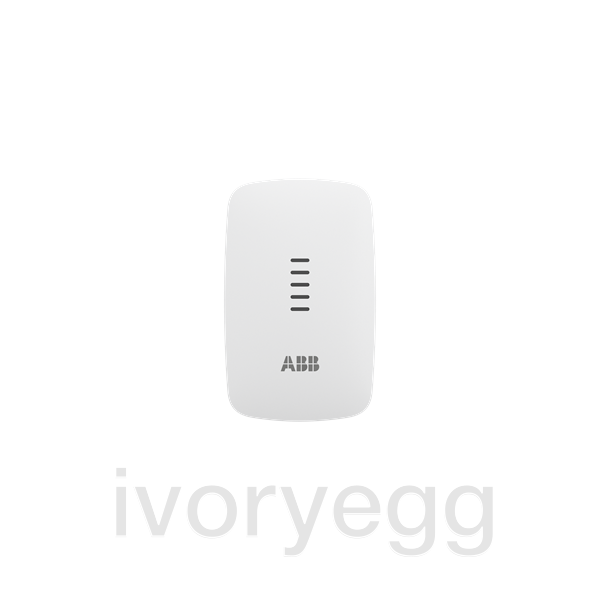

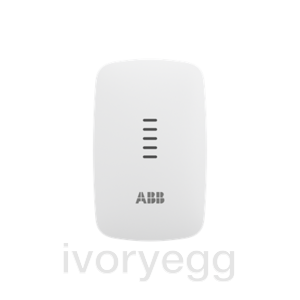

Electromotor Valve Drive
Description
It is equipped with an integrated temperature sensor and an integrated room temperature controller. It delivers a high actuating force of up to 220 N and a maximum valve stroke of 8 mm. It features 2 universal binary inputs, supporting connection options such as window contacts, presence detectors, and push-buttons. The second input also supports external temperature sensors. Additionally, the drive includes automatic valve adaptation and is compatible with a wide range of valve adapters, making it universally applicable. 2 adapters for the most common valves (M30x1.5 and Danfoss RA -VA 10 & VA 100-) are supplied. The Bus Coupler is integrated. The device can be used in the heating circuit distributor. The actual valve position can be indicated by 5 LEDs.
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | ABB |
