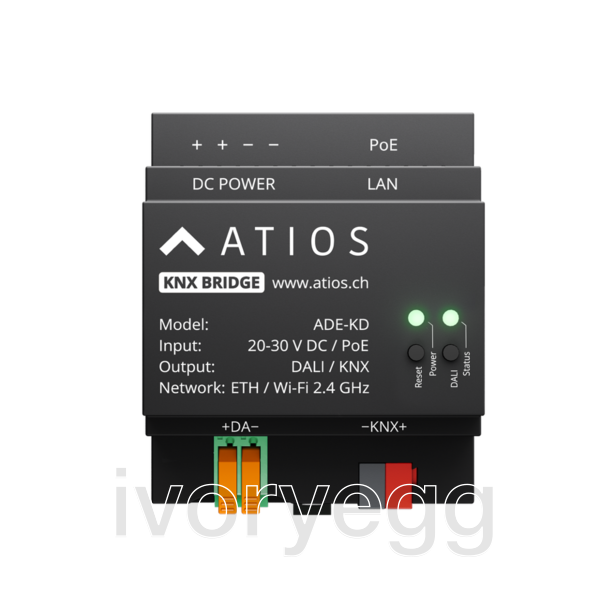

KNX Bridge
Description
- Intuitive web interface for configuring the Matter bridge for visualization and control.
- Supported Matter and HomeKit device types: lights (on/off, dimmable, tunable white, RGB, RGBW, RGBAW), switches (on/off), sockets, fans, programmable switches, blinds, shutters, and curtains with or without position and tilt control, thermostats, door locks, garage doors (HomeKit only), sensors (temperature, motion, presence, contact, CO₂, CO, air quality, smoke, humidity, leakage, and brightness).
- Web interface for addressing, grouping, and testing DALI lighting.
- ETS product database objects: On/Off, On/Off status, relative dimming, value dimming, value status, HSV 2-byte object, HSV status, tunable white in Kelvin, tunable white status, for all 64 addresses, 16 groups, and broadcast.
- Support for scenes and automations via Apple Home, Google Home, Samsung SmartThings, etc.
- Multi-user access via Apple Home, Google Home, Samsung SmartThings, etc.
- Push notifications via Apple Home, Google Home, Samsung SmartThings, etc.
Technical Details
Specification
Power supply: Power over Ethernet 802.11af; or 20–30 V DC
Power consumption: 1 W, with DALI power supply enabled 5 W
KNX medium: TP256, twisted pair
DALI standard: DALI and DALI-2 IEC62386 with multi-master support
DALI power supply: 250 mA, can be enabled/disabled in case of external supply
App support: Apple Home and Home Assistant via HomeKit; Apple Home, Google Home, Samsung SmartThings, Amazon Alexa, Home Assistant and more via Matter
ETS product database: KNX-DALI gateway configuration via ETS (see ETS online catalog)
IP protocol: Ethernet 10/100 Base-T and 2.4 GHz Wi-Fi
Ambient temperature: −5 °C to +45 °C
Dimensions: 70 × 85 × 60 mm
Mechanical data: DIN-rail device, installation width: 4 modules (TE)
Enclosure: ABS, weight 85 g
Control: 2 push buttons
Indicators: 2 multicolor status LED
Properties
Properties
| Brand | ATIOS |
