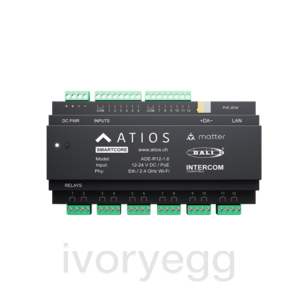

SmartCore
Description
- Visualization, app, and voice control of KNX systems via Matter, compatible with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, Homey, and all other Matter platforms.
- Intuitive web-interface for configuration, plug and play, no programming knowledge needed.
- Support of DALI Control Gear Broadcast, Single Address, and Group Control and DALI-2 Sensors.
- Easy web-interface for DALI Configuration: addressing, grouping, and testing DALI & DALI-2 devices.
- Supported Matter and HomeKit device types: lights (on/off, dimmable, tunable white, RGB(CW)), switches (on/off), sockets, fans, programmable switches, blinds, shutters, and curtains with or without position and tilt control, thermostats, door locks, garage doors (HomeKit only), sensors (temperature, motion, presence, contact, CO₂, CO, air quality, smoke, humidity, leakage, and brightness).
- Support of Scenes and Automations via Apple Home, Google Home, Samsung SmartThings etc.
- Multi user access via Apple Home, Google Home, Samsung SmartThings etc.
- Push Notifications via Apple Home, Google Home, Samsung SmartThings etc
Technical Details
Specification
Power supply: PoE 802.11af or external DC 24 V
Power consumption: 1 W, with DALI power supply enabled 5 W
Outputs: 12x bistable 16A Relay 250 V AC
Inputs: 12x wide range 12-230 V AC/DC
DALI standard: DALI and DALI-2 IEC62386 supporting Multi Master Mode
DALI power supply: 250 mA, can be de/activated in case of external PSU
DALI programming interface: Embedded Webinterface or Lunatone DALI Cockpit (DALI-2 IoT Gateway)
App support: Apple Home and Home Assistant via HomeKit; Apple Home, Google Home, Samsung SmartThings, Amazon Alexa, Home Assistant and more via Matter
IP Communication: Ethernet 10/100 Base-T and 2.4 GHz Wi-Fi
Ambient temperature: -5 °C to +45 °C
Dimensions: 109 x 178 x 60 mm
Mechanical: DIN-rail device, installation width: 10 modules, screw taps for wall-mount
Housing: ABS, weight 435g
Controls: 1 push button
Indicators: 1 multicolor LED
Properties
Properties
| Brand | ATIOS |
