JUNG BRG459D1S

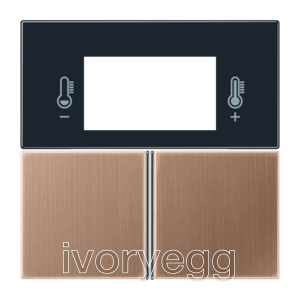

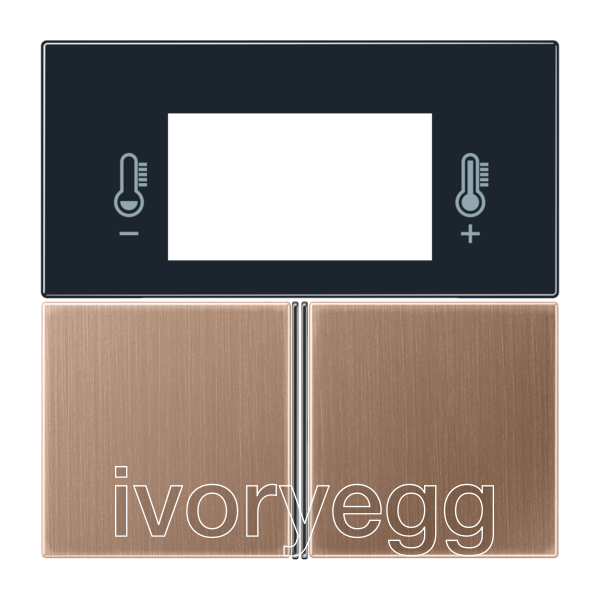

LS Touch KNX room controller with frame LS 990, Secure, metal, brushed bronze

Product code: BRG459D1S

with integrated 1-gang frame LS 990 Only install as a single device, not suitable for combinations!

Intended use

Operation of loads (light switching, dimming, controlling blinds and shutters etc.)
Visualisation of system statuses and information (e.g. temperature and brightness)
Measurement and feedback control of the room temperature
Installation in flush box with dimensions according to DIN 49073

Product Characteristics

High resolution IPS colour display
Capacitive touchscreen
Function of favourites page adjustable (without ETS)
Max. 32 operating functions switching, dimming, controlling blinds, value transmitters, calling up light scenes, etc.
Integrated room temperature sensor
Room temperature control with setpoint specification
Control of split units (only with update, available since July 2024)
Alarm function (optical and/or acoustic)
Max. 8 timer functions can be activated and set (depending on time, astronomical clock or random)
Integrated proximity and brightness sensor
Integrated bus coupling unit
Connection of installation buttons or reed contacts possible
Commissioning and support of KNX Data Secure with ETS from version 5.7.4
Can be updated
Display of room temperature and setpoint temperature
External temperature sensor (ref.-no.: FF NTC) can be connected
Display of outdoor temperature – with external sensor, e.g. weather station
In combination with JUNG Smart Visu Server: music play control and volume control

Spare part:
Connection terminal ref.-no.: LS 459 D-CLAMP

Technology	KNX
Brand	JUNG
