THEBEN

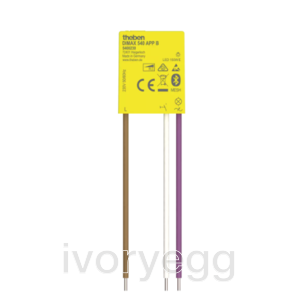

DIMAX 540 APP B
Flush-mounted dimmer for R and C loads
Product code:
5400230
Flush-mounted dimmer for R and C loads
No neutral conductor necessary
Can be controlled and programmed via Bluetooth using an app or push-button
Description
- Can be networked and expanded via Bluetooth mesh
- Light scenes and astro program
- App for Android and iOS
- Cable length of up to 100 m possible, also suitable for two-way circuits with larger distances and multiple push buttons
- Easier selection of the optimal dimming value thanks to extended dimming speed of 5 seconds
- Optimised settings for LEDs and incandescent lamps
- Function minimum brightness (10% in state of delivery, adjustable)
Technical Details
Specification
| Operating voltage | 230 V AC |
| Frequency | 50 - 60 Hz |
| Installation type | Flush-mounted |
| Stand-by consumption | < 0.5 W |
| Incandescent/halogen lamp load | 150 W |
| LED lamp 2-8 W | 150 W |
| Programmierung per App | |
| Setting | App |
| Max. cable length | 100 m |
| Ambient temperature | -10°C ... 45°C |
Properties
Properties
| Technology | 230VAC |
| Brand | THEBEN |
