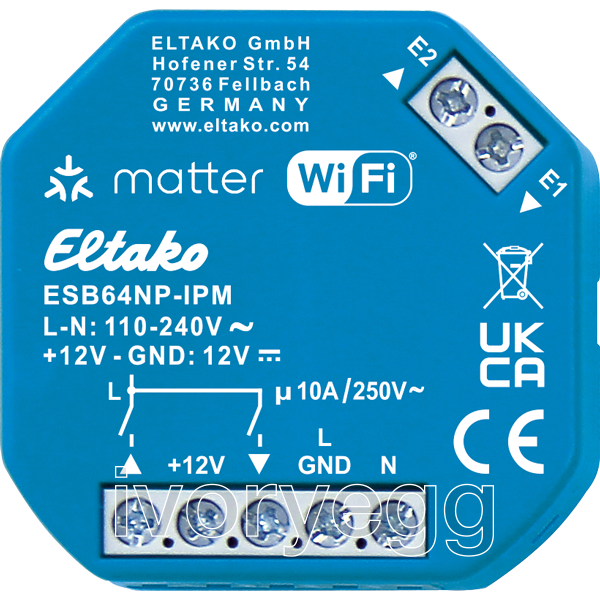

ELTAKO ESB64NP-IPM

Shading actuator with IP, matter over Wi-Fi, optional EnOcean, 1+1 NO 10 A/250 V AC, not potential-free

Product code: 30064019

For installation. 46x45mm, 20mm deep.
The connection terminals are screw terminals for conductor cross-sections up to 2.5mm².
Supply, switch and control voltage 12V DC or 110–240V AC.
State-of-the-art hybrid technology combines advantages of nonwearing electronic control with high capacity of special relays.
With control input for a control pushbutton that may be mounted in front of it.
Glow lamp current is not permitted.
The Wi-Fi link uses the 2.4 GHz frequency band and permits Over-the-Air updates (OTA).
This actuator is Matter certified and can therefore be taught-in into different ecosystems and operated in parallel.
To control via Matter, a compatible Matter controller is required for each ecosystem.
For Apple Home, for example, a Homepod mini, for Amazon Alexa, for example, a compatible Echo Dot and for Google Home, for example, a Nest mini.
As an option, the actuator can be configured via the ELTAKO Connect-App.
A development version of the REST API is available through the device‘s online product page. This is continuously being further developed.
The range of functions can be expanded using plug-on adapters.
The EnOcean adapter (EOA64) enables access to the EnOcean ecosystem.
Further information on this can be found on the product page of the respective adapter.

Brand	ELTAKO
