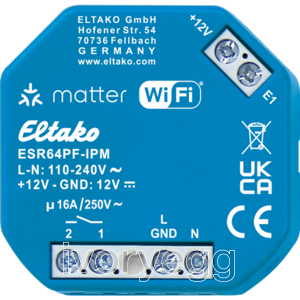

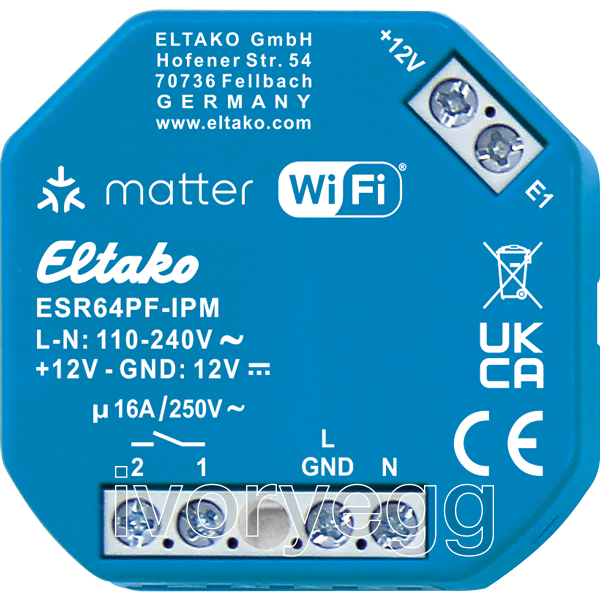

Impulse switch relay with IP. matter over Wi-fi, optional EnOcean, 1 NO potential-free 16A

Description

REST-API. Only 0.5 watt standby loss. For installation. 46x45mm, 20mm deep. The connection terminals are screw terminals for conductor cross-sections up to 2.5mm². Contact switching at zero crossing to protect contacts and lamps. Suplly and control voltage 12V DC or 110-240V AC. State-of-the-art hybrid technology combines advantages of nonwearing electronic control with high capacity of special relays. With control input for a control button or switch that may be mounted in front of it. Glow lamp current is not permitted. The Wi-Fi link uses the 2.4 GHz frequency band and permits Over-the-Air updates (OTA). This actuator is Matter certified and can therefore be taught-in into different ecosystems and operated in parallel. To control via Matter, a compatible Matter controller is required for each ecosystem. For Apple Home, for example, a Homepod mini, for Amazon Alexa, for example, a compatible Echo Dot and for Google Home, for example, a Nest mini. As an option, the actuator can be configured via the ELTAKO Connect-App. A development version of the REST API is available through the device‘s online product page. This is continuously being further developed. The range of functions can be expanded using plug-on adapters. The EnOcean adapter (EOA64) enables access to the EnOcean ecosystem. Further information on this can be found on the product page of the respective adapter.
