FUTURE AUTOMATION
LXN4-D

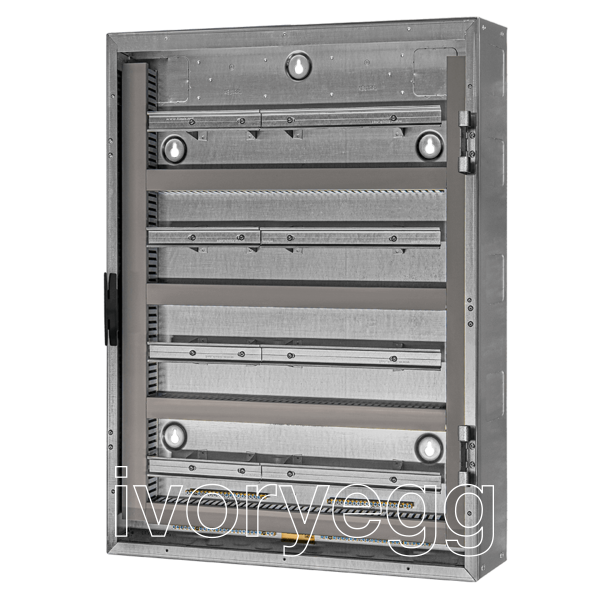

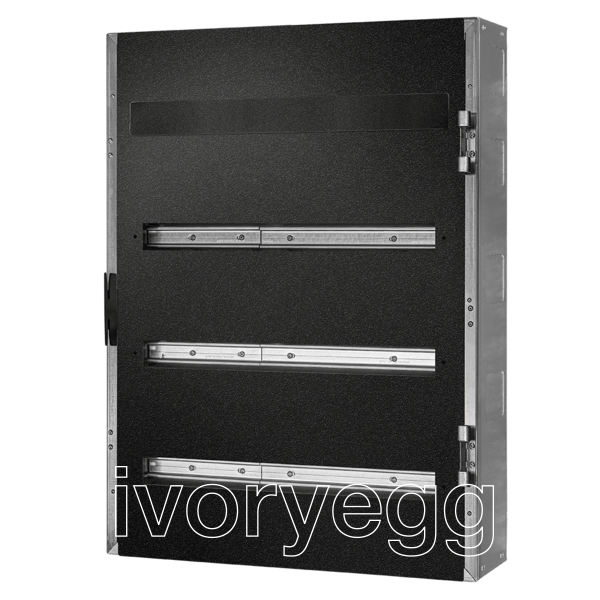

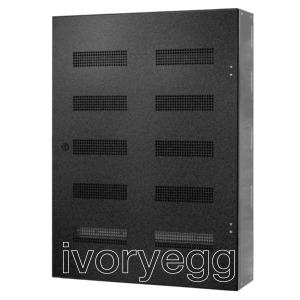

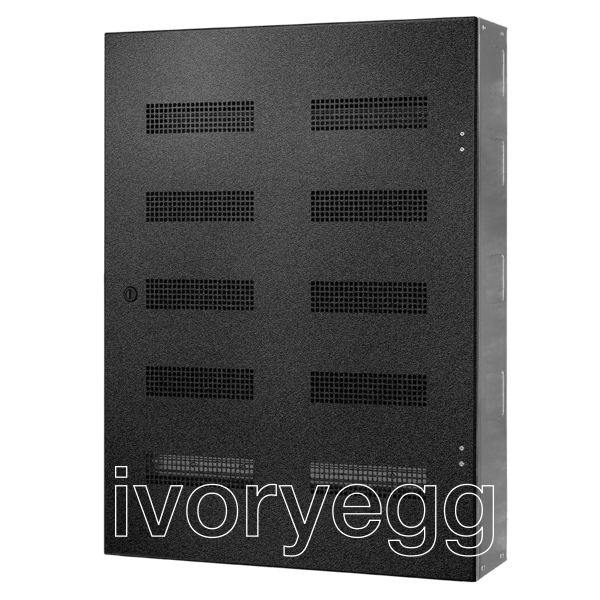

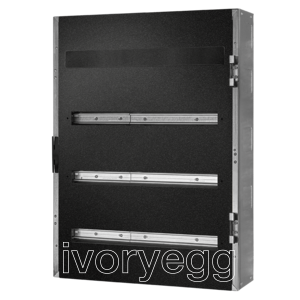

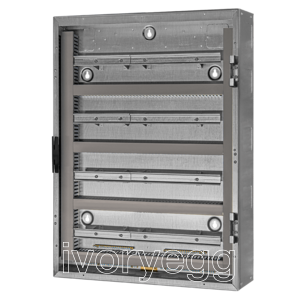

Loxone - 4 DIN Rail Enclosure - Deep
Product code:
LXN4-D
The Future Automation LXN (Loxone Control Panel) range are DIN rail enclosures that have been specifically designed to pair with the Loxone Smart Home Automation system.
Description
Deeper than the standard LXN panel, the LXN-D panels have been designed with the following features:
- Accommodate larger power supplies.
- Each DIN rail can be split 60% or 40% lower for higher power supplies or modules
- Provision for twin earth and neutral bars at the top or bottom allowing choice of where to mount RCBOs
- Provision to easily add extra Trunking top or bottom if required
Developed in association with Loxone, the LXN enclosure has been designed to be an integral piece of every Loxone Smart Home installation.
- Full Cable Management Trunking
- Easy Installation / Mounting
- Removable Front Cover
Technical Details
Specification
Depth from wall 310mm (12.2")
DIN Rails: 4
Finish: Lid - textured black paint. Box - Zinc coated steel
Panel Dimensions: 1060 X 880 X 310mm (41.7 X 34.6 X 12.2")
Wall mount type: Keyhole slots
Properties
Properties
| Brand | FUTURE AUTOMATION |
