FUTURE AUTOMATION
RCP4
Rako - 4 DIN Rail Enclosure
Product code:
RCP4

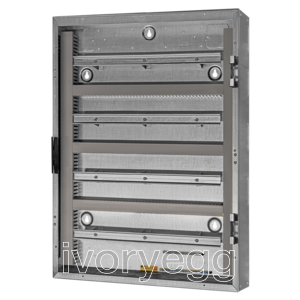

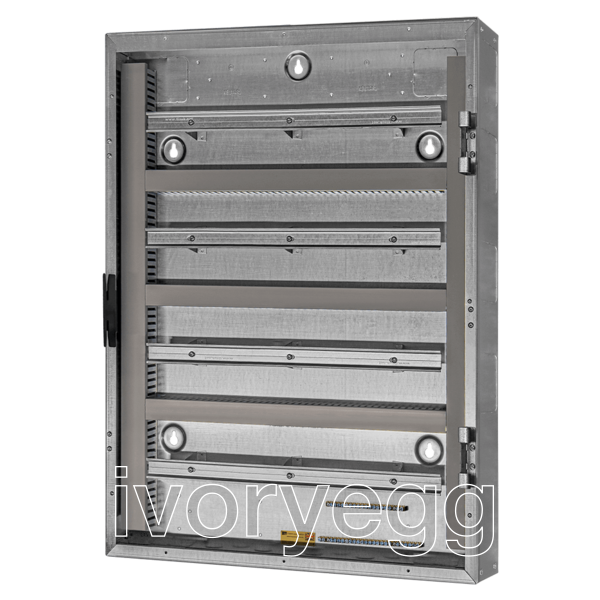

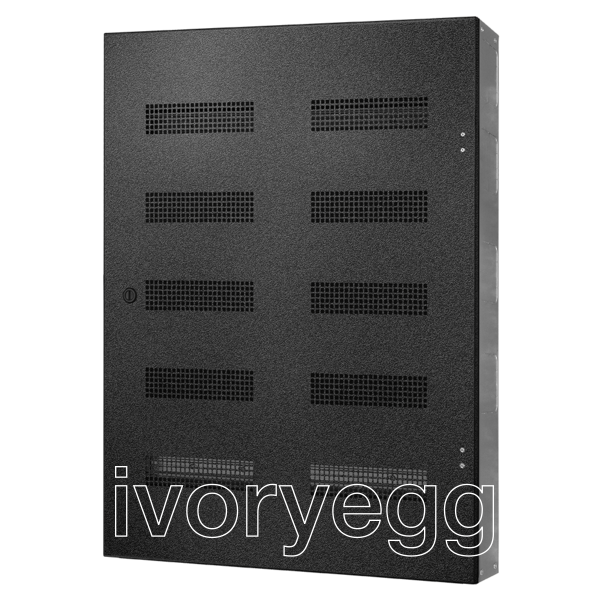

The Future Automation RCP (Rako Control Panel) range are DIN rail enclosures that have been specifically designed to pair with the Rako Lighting Control System.
Description
This unique control panel incorporates the internationally recognised DIN rail system, along with a range of neatly designed install assisting benefits such as; full integral cable management, dedicated earthing and neutral bars, a fully removable front cover making installation of your Rako lighting control system easy and tidy.

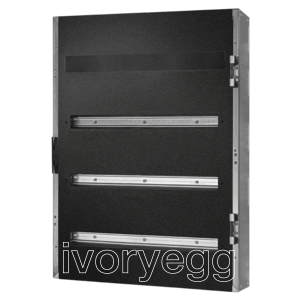

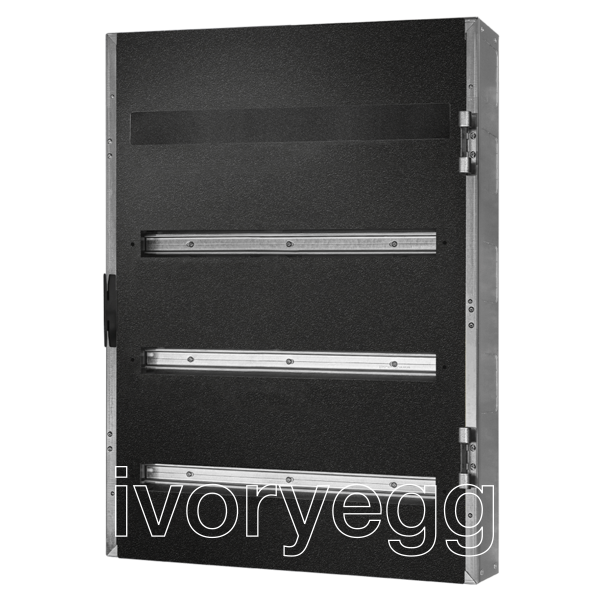

The lid of the RCP has full width cut outs, to allow for a flexible installation. This means that to comply with regulations, a compatible module trim plate must be used to complete each rail:
- 1 x Rako module - LXN-MTP157
- 2 x Rako modules - LXN-MTP319
- Empty rail (future expansion) - LXN-BP
Technical Details
Specification
Depth from wall: 141.5mm (5.57")
DIN Rails: 4
Finish: Lid - textured black paint. Box - Zinc coated steel
Panel Dimensions: 900 X 690 X 141.5mm (35.43 X 27.16 X 5.57")
Wall mount type: Keyhole slots
Properties
Properties
| Brand | FUTURE AUTOMATION |
