GIRA
200800

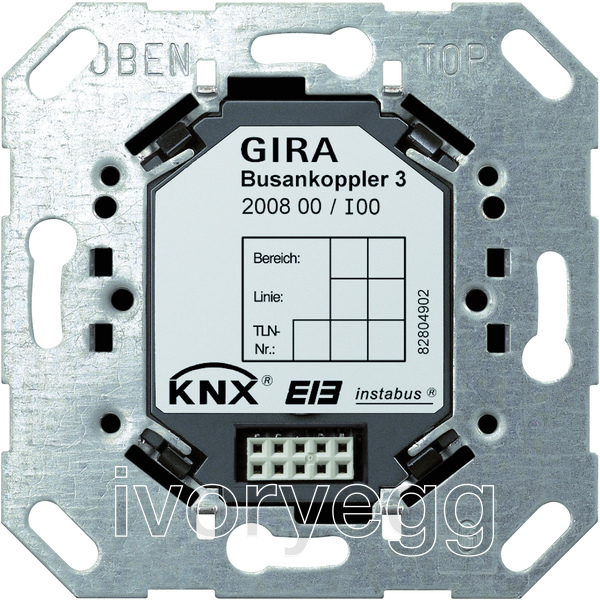

Bus Coupler 3 KNX insert
Product code:
2008 00
Bus Coupler for all GIRA push buttons and Room Temperature Controllers.
Description
Used for the coupling of the GIRA KNX application modules with programming buttons to KNX systems.
Note, GIRA bus couplers will only work with GIRA push buttons and RTC's due to the mechanical fit and hardware ID's.
Bus couplers provide a mechanical fit for the application module to and also regulate voltage and telegram flows to and from the KNX bus.
Technical Details
Specification
- Bus Voltage: KNX Bus 21...32VDC
- Bus Current Consumption: Depends on Application Module
- Ambient temperature: -5 ... +45°C
- Storage/transport temperature: -25 ... +70°C
- Safety class: III
- Connection mode KNX: Standard KNX/EIB connection terminals
Properties
Properties
| Technology | KNX |
| Brand | GIRA |
| Mounting | Depends on Frame Choice |
| Back Box | Round European |
| Operating voltage | KNX Bus (29VDC) |
| EAN | 4010337082187 |
