GIRA
202700

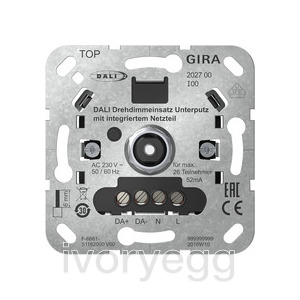

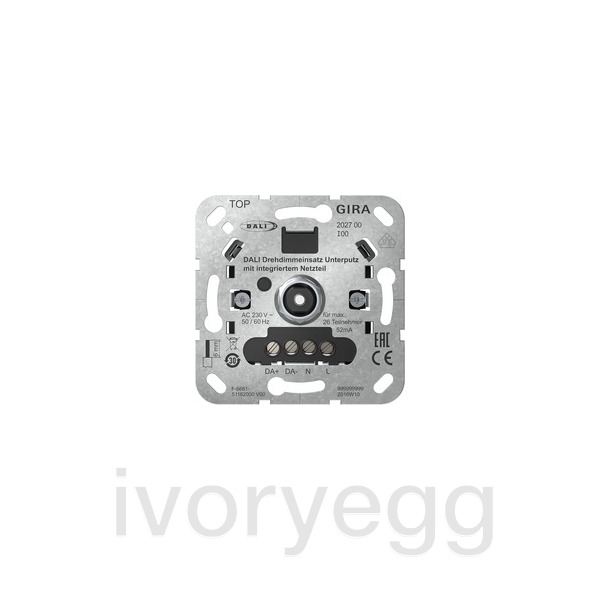

DALI flush-mounted rotary dimming insert with integrated power supply unit
Product code:
2027 00
Description
- Brightness adjustment for lights with a DALI interface.
- Adjustment of colour temperature for lights with DALI Device Type 8 for Tunable White according to IEC 62386-209.
- Rotary auxiliary unit (input device) for higher-level DALI-2 controls.
Product characteristics without programming
- DALI flush-mounted rotary dimming insert with integrated power supply unit for up to 26 devices.
- Parallel connection of up to 4 DALI flush-mounted rotary dimming inserts with integrated power supply unit with the capacity to supply up to 104 DALI devices.
- Multimaster-compatible.
- LED for device localisation.
- DALI power supply unit short-circuit-proof
- Saving the base brightness and a switch-on brightness.
- Saving the colour temperature limit values.
Product characteristics through programming via DALI-2 control commands
- Suitable as rotary auxiliary unit (input device) for connecting to central DALI-2 controls.
- Supports four DALI-2 instances for adapting to central control.
- Can be used for controlling a DALI-2 group.
- Cyclical transmission of control commands to DALI operating devices can be activated. Device function depends on configuration
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | GIRA |
