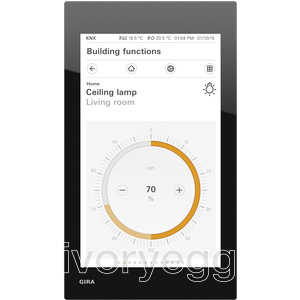

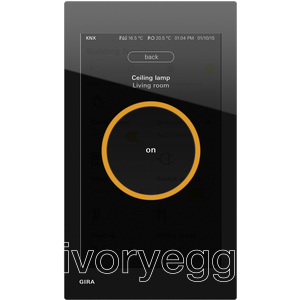

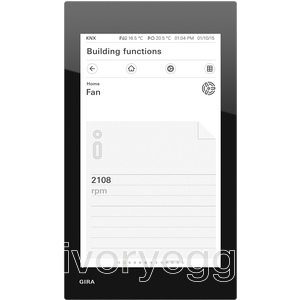

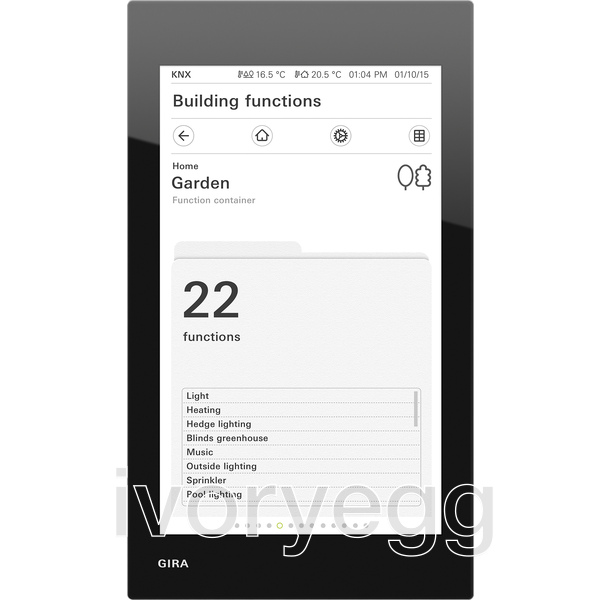

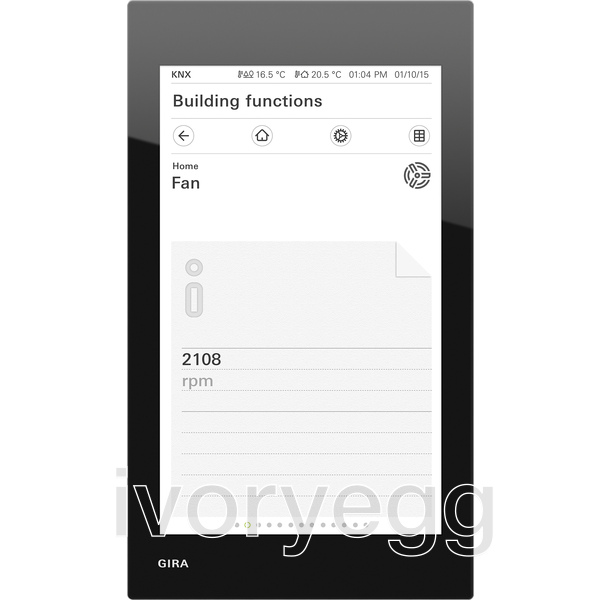

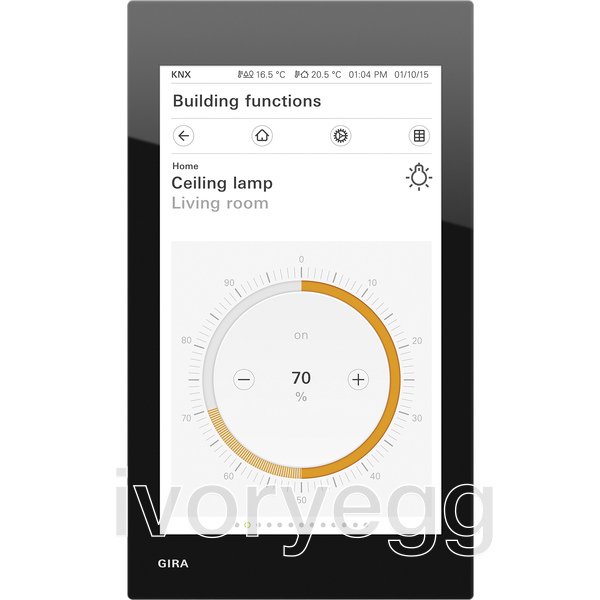

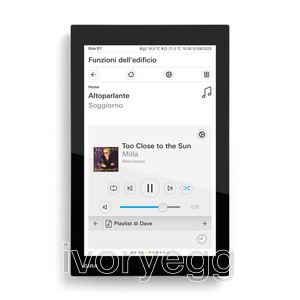

Gira G1 in Black Glass - with WLAN

Description

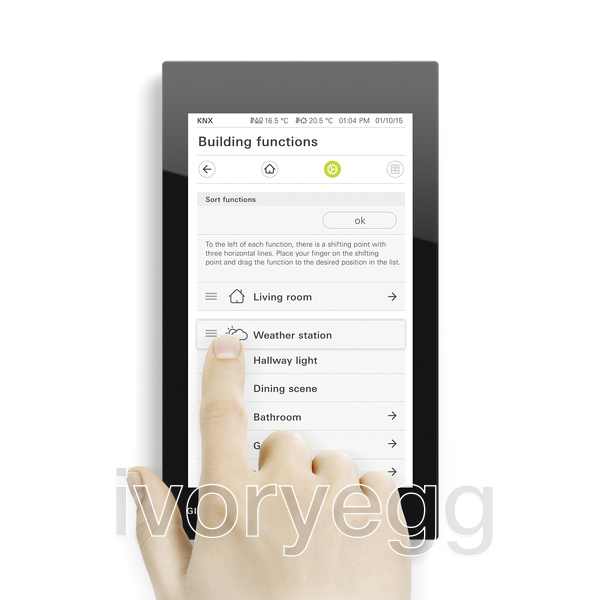

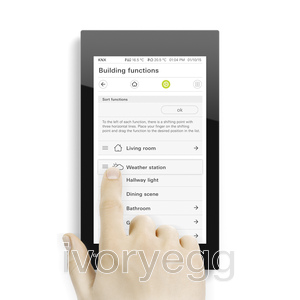

• A gesture-controlled multi-touch display is used for operation.
• Connection and communication are via LAN or WLAN, depending on the variant.
• Integrated speaker.
• Integrated microphone with echo compensation.
• Monoblock device with integrated power supply unit and RJ45 connection.
• Quick start-up via the Gira Project Assistant (GPA) with optimised usage profiles for room or building operation.

Potential applications and combinations

• As a multifunctional room operating device, the Gira G1 offers the following functions or combinations of functions: - Home station as SIP client - Home station for DCS IP gateway - Internet service integration - Client for the following systems/servers: Gira HomeServer - Gira X1 - Gira One

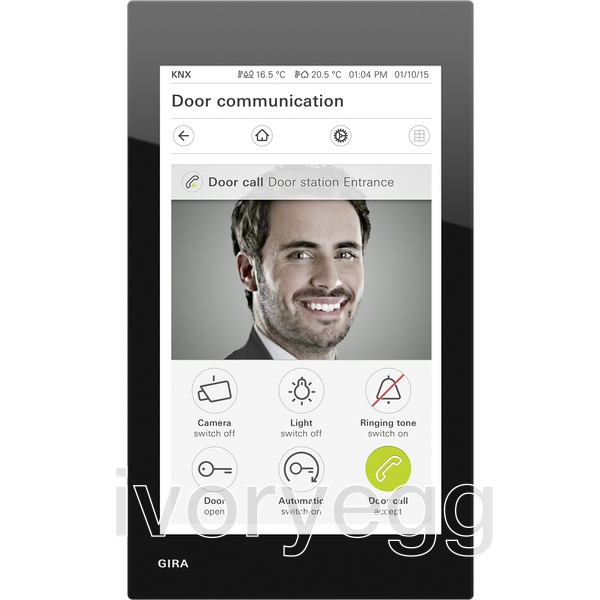

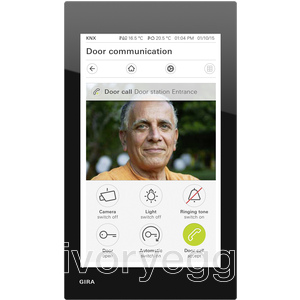

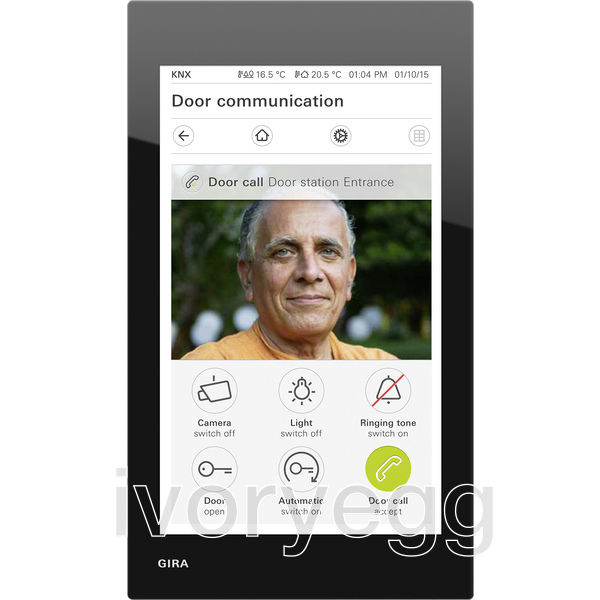

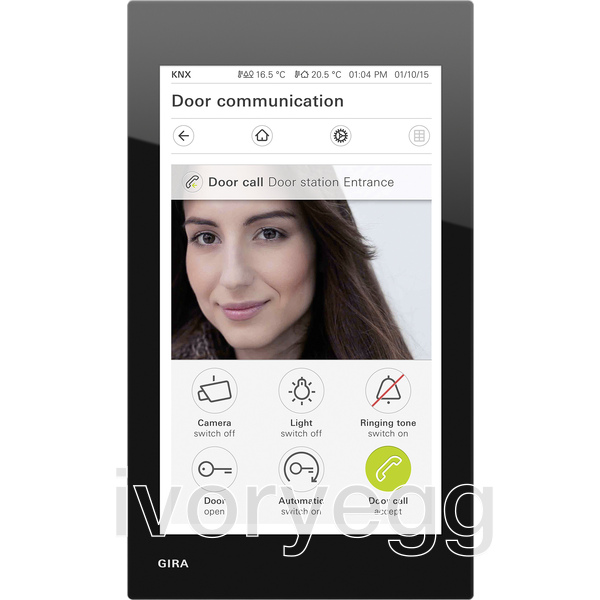

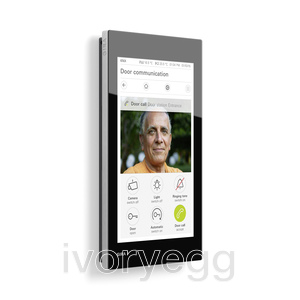

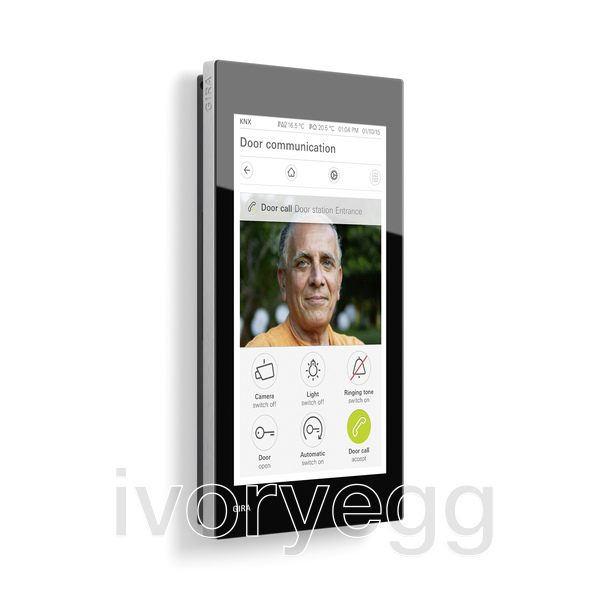

Features as a video home station

• Camera changeover: specific selection of connected colour cameras.
• Controlling the door opener.
• Switching the ringing tone on and off.
• Ringtone can be selected from a choice of 10 melodies.
• Accepting calls.
• Adjustment of ring tone and voice volume.
• Internal calls.
• Floor call can be triggered with auxiliary input.
• Floor call can be triggered using the pushbutton sensor for KNX.

Properties as a home station with SIP client

• Client function for SIP external systems from e.g. Comelit, TCS, SCHÜCO DCS Touch, 2N.
• SIP calls can be made directly or via registry.
• 64 internal calls possible, e.g. to the concierge.
• Early Media support for video image

Integration of internet services

• Gira weather service: display of the weather forecast for up to five cities (internet connection required).

Properties as a Gira HomeServer client

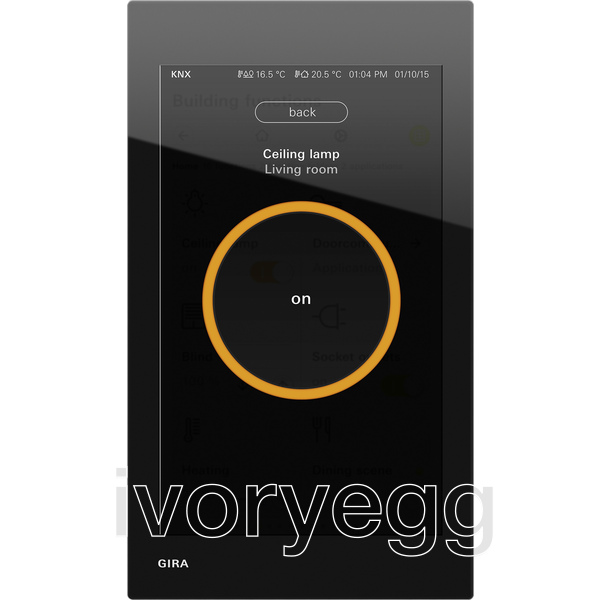

• Both the light and dark designs are supported and the user can switch between the two.
• If the G1 is to be used solely as a room operating device, simplified parametrisation via the GPA is possible.
• In addition, the G1 can be used as a home station at the same time. This function can be implemented as an SIP client or, for the Gira 2-wire door communication, via the DCS IP gateway.

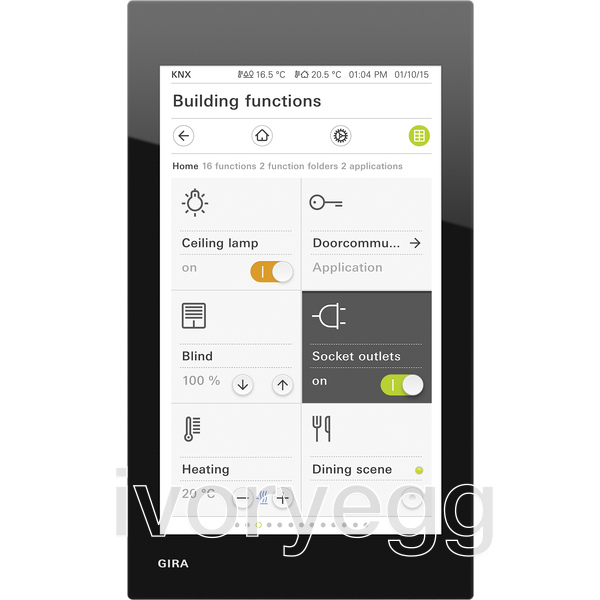

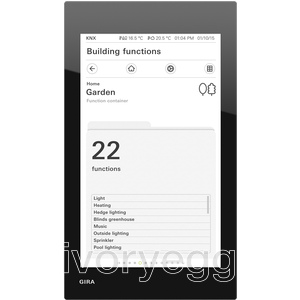

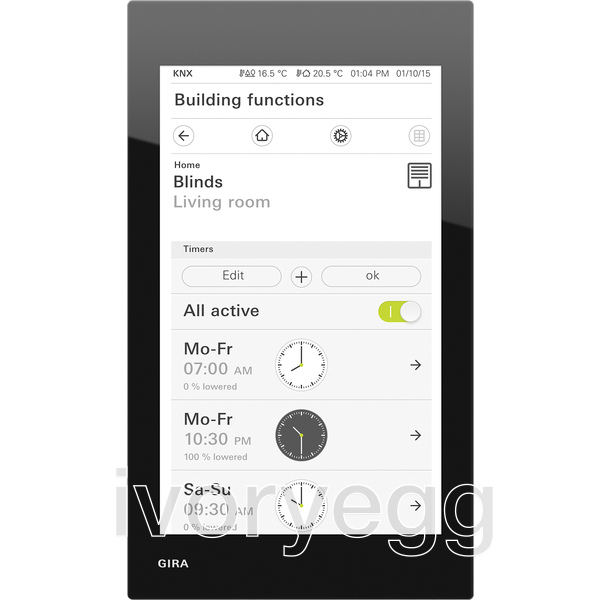

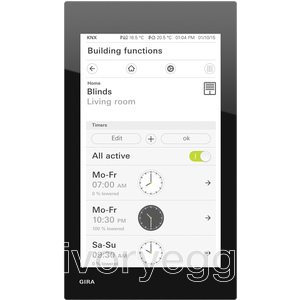

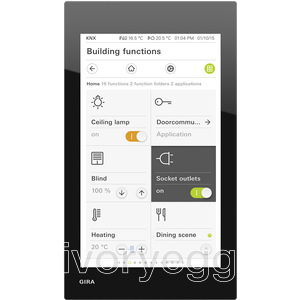

Properties as a Gira X1 client

• Depending on the configuration, the Gira G1 can also be used as a client in systems with a Gira X1.
• Following activation, the Gira G1 shows the interface design of the Gira X1. Up to 500 Gira X1 functions can be supported.
• In addition to the Gira X1 building control functions, the following functions are available in the Gira G1 when used as a Gira X1 client:- Direct function- Gira door communication- Online weather service

Properties as a Gira One server client

• Depending on the configuration, the Gira G1 can also be used as a client in systems with a Gira One server.
• Once activated, the Gira G1 displays the Gira interface of the Gira Smart Home App. Up to 250 Gira One devices can be displayed in this manner.
• A maximum of 50 Gira G1 units can be used within one and the same Gira One project.
• In addition to the building control devices, the following functions are available in the Gira G1 when used as a client on the Gira One server:- Direct function- Gira door communication- Online weather service.

Technical Details
