GIRA
207312

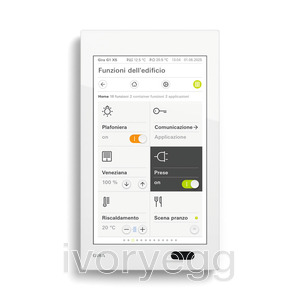

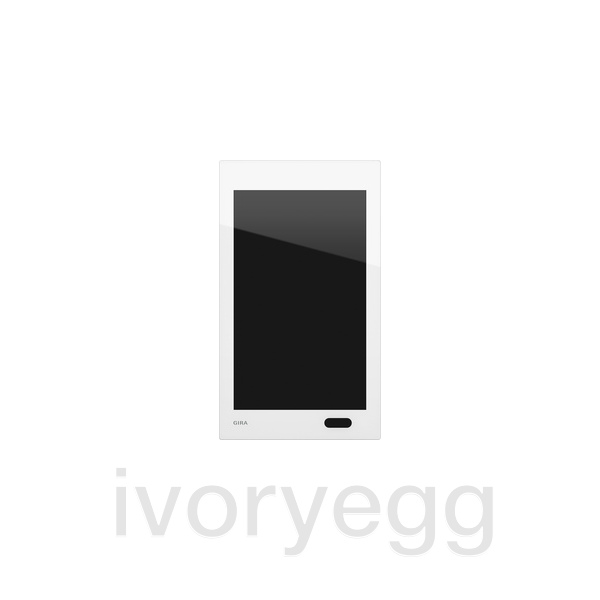

Gira G1 XS in White Glass - without WLAN
Product code:
2073 12
The Gira G1 XS is a multi-functional room operating device for visualising and operating a variety of building functions. For use in the KNX system and Gira door communication system, or as client.
The user interface is very intuitive and iOS like in its use and will be instantly familar to anyone with a smart phone.
Description
- A gesture-controlled multi-touch display is used for operation.
- Connection and communication takes place via LAN.
- Integrated speaker.
- Integrated microphone with echo compensation.
Potential applications and combinations
- As a multi-functional room operating device, the Gira G1 XS offers the following functions or combinations of functions:
- KNX room operating device
- Video home station
- Client for the following systems/servers: Gira X1 - Gira One
- Integration of internet services
Properties as a KNX room operating device
- Intuitive user interface that can be adapted by the end user.
- Switching and dimming (relative and absolute), dimming (incl. Dimming RGB, RGBW, and Tunable White), blind and roller shutter control, value transmitter, and scene auxiliary unit.
- Status display, display of date and time, display of inside and outside temperature.
- Up to 150 functions (six function folders or rooms with up to 25 functions each).
- Up to 125 seven-day time clocks with 10 switching times each.
- Room temperature controller in combination with the temperature sensor module (available as an optional extra), or KNX devices for room temperature measurement, e.g. touch sensor 3 Komfort.
- Operating modes: Comfort, standby, night and frost or heat protection with their own respective set temperature (for heating and/or for cooling).
- Operating modes can be adapted individually.
- A heating clock as seven-day time clock with 28 switching times.
- Room temperature controller auxiliary unit for controlling air conditioning systems (fan coil) in conjunction with a KNX gateway for air conditioning systems.
- Supports KNX Data Secure and KNX IP Secure.
Features as a video home station
- Camera changeover: specific selection of connected colour cameras.
- Controlling the door opener.
- Switching the ringing tone on and off.
- Ringtone can be selected from a choice of 10 melodies.
Properties as a home station with SIP client
- Client function for SIP third-party systems from e.g. Comelit, TCS, SCHÜCO DCS Touch, 2N.
- SIP calls can be made directly or via a Registrar
- 64 internal calls possible e.g. to the concierge
- Early Media support for video image
Integration of internet services
- Gira weather service: display of the weather forecast for up to five cities (internet connection required).
The Gira G1 XS can also be used as a client for the following systems/servers:
- Gira X1 Client
- Gira One
- The functions of the KNX room operating device are not available when it is functioning as a client. The exact range of functions are described in the Gira online catalogue and the technical documentation for the device.
Technical Details
Specification
Power consumption
Maximum: 7 W
Typical: 4 W
Minimum: 2 W
Power supply
PoE performance class: 0 DC 48 V PoE
LAN standard: IEEE 802.3af
Connection cable
Ethernet specification: Cat.5e, cat.6, cat.6a, cat.7
Display
Type: TFT
Size: 15.3 cm (6″)
Number of colours: 16.7 M
Resolution: 480 x 800 px (WVGA), 155 ppi
Brightness: 350 cd/m²
Contrast ratio: 1:500
Viewing angle: > 80° all round
Proximity sensor
Range: Max. 50 cm
Detection range: 30° horizontal, 30° vertical
KNX medium: KNXnet/IP
KNX standards
DPTs value transmitter: 5.010, 6.010, 5.001, 5.004, 7.001, 8.001, 9.xxx, 12.001, 13.001, 14.xxx
Protection class: IP21
Installation depth: 32 mm
Ambient temperature: 0 °C to +45 °C
Properties
Properties
| Technology | KNX |
| Brand | GIRA |
| Colour/Material | White |
| Switch action | Touch |
| Display | Colour TFT |
| Back Box | Round European |
