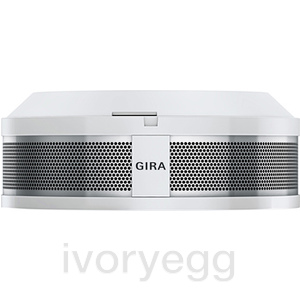

Dual Q smoke alarm device

Description

Increased quality criteria and technical advancements in smoke alarm devices are indicated on the market with the new Q test mark. The new Q-Label is an autonomous, manufacturer-independent quality mark for high-quality smoke alarm devices which undergo special testing for long-term use. The latest generation of Gira smoke alarm devices fulfil the criteria of the new Q-Label quality mark. The smoke alarm devices operate based on the photoelectric scattered light principle without radioactive particles. The smoke alarm devices detect smoke accumulation early and emit a warning signal before the concentration of smoke can become hazardous to people. Alerting occurs via a loud pulsing alarm tone and a flashing LED.

Features:

• Only for use in private residential units or residential-like areas in accordance with DIN 14676.
• Tested durability and reduction of false alarms.
• Increased stability, e.g. against external factors.
• Permanently installed battery with a service life of up to 10 years.
• designAaccording to DIN EN 14604.
• KRIWAN approval.
• Battery-operated combined smoke alarm device and heat detector.
• Fire and heat alarms alerted differently.
• Heat detection via maximum and differential function.
• Muffled alarm signal (approx. 75 dB (A)) during function test.
• Integrated function button for alarm acknowledgement, function test and muting, for example.
• Smoke detection can be switched off.
• Automatic smoke evaluation self-test with tracking of soiling.
• Contamination or fault indication.
• Signalling of technical faults can be delayed up to 12 h in darkness.
• "Weak battery" indication.
• Up to 40 smoke alarm devices can be networked on each wire.
• One module interface for three optional modules (KNX module, wireless module, relay module) with simultaneous use of the networking terminal.
