GIRA
5016003

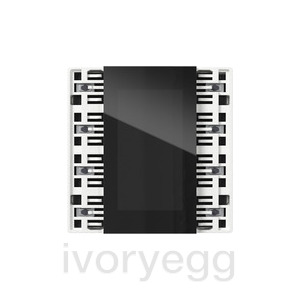

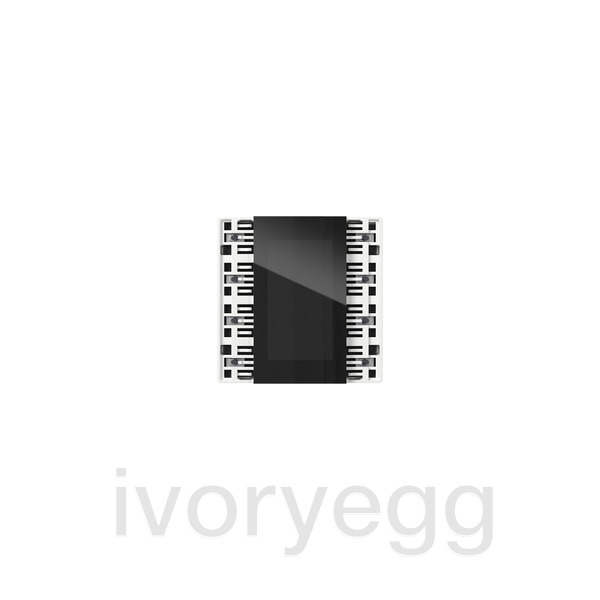

KNX pushbutton sensor 4.55 Plus, 2-gang/4-gang, white
Product code:
5016 003
Pushbutton sensor with integrated bus coupler and integrated display for showing functions and status
Description
- Rocker function or button function can be set for each operating surface.
- Integrated temperature and humidity sensor.
- Integrated proximity sensor, transmission of a telegram when approached.
- Integrated orientation LED.
- Alarm message with sound and warning (text).
- User-defined colours for text and icons.
- Screensaver that can show up to four elements (time, date etc.) on the display.
Rocker function
- Switch (ON, OFF, CHANGE), dimming, scene auxiliary unit, blind and controller auxiliary unit.
- Differentiation between long or short button press.
- Dimming mode, start/stop or dimming in stages.
- Retrieve/save scenes.
- Controller auxiliary unit for operating mode switchover (comfort, standby, night) or setpoint adjustment.
Button function
- Switch (ON, OFF, CHANGE), dimming, RGB switching/value transmission, RGBW switching/value transmission, colour temperature switching/value transmission, value transmitter, scene auxiliary unit, blind, shift register, 4-channel operation and colour temperature adjustment.
- Dim colour temperature: this function is only available with the 2-gang, 3-gang and 4-gang pushbutton sensors.
- RGB dimming. This function is only available with the 3-gang and 4-gang pushbutton sensors.
- RGBW dimming. This function is only available with the 4-gang pushbutton sensor.
- Differentiation between long or short button press.
- Dimming mode, start/stop or dimming in stages.
- Retrieve/save scenes.
- Value transmitter (1-bit, 2-bit, 4-bit, 1-byte, 2-byte, 4-byte)
Two zero-voltage contacts
- Connection of a Gira remote sensor (predefined values) or an NTC temperature sensor or switch, button, leakage sensor and condensation sensor.
- Function: Response when closing or opening (ON, OFF, CHANGE) the contact, scene auxiliary unit (retrieve/save), string transmission (14-byte) and differentiation between long or short button press.
Display properties
- Configurable colour display with text and/or icons.
- 120 different icons can be selected.
- Display brightness can be set to normal/night mode.
- The lighting ambience can be set via the submenu.
Technical Details
Specification
KNX medium: TP256
KNX current consumption: 8 to 14 mA
KNX connection: Connection and junction terminal
Number of inputs: 2
Length cable set: 25 cm, can be extended to max. 5 m
Protection class: III
Installation depth: 20.8 mm
Ambient temperature: -5 °C to +45 °C
Relative humidity: 5 to 93 % (without condensation)
Properties
Properties
| Technology | KNX |
| Brand | GIRA |
| Design range | GIRA System 55 |
| Switch action | Push Button |
| Back Box | Round European |
| Operating voltage | KNX Bus (29VDC) |
| Buscoupler | Included |
| KNX Secure | Yes |
