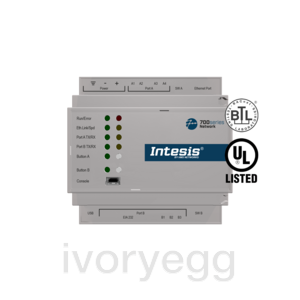

Protocol converter Modbus to BACnet, BACnet to Modbus, or BACnet to ASCII - 250 points

INTESIS IN7004852500000

Protocol converter Modbus to BACnet, BACnet to Modbus, or BACnet to ASCII - 250 points

Product code: IN7004852500000

This bidirectional gateway can be configured with Intesis MAPS to integrate: - Modbus (TCP & RTU) into BACnet (IP or MS/TP) - BACnet (IP or MS/TP) into Modbus (TCP & RTU) - BACnet (MS/TP or IP) into ASCII serial & TCP It supports the integration of up to 250 points.

Description

Bidirectional protocol converter. Configurable for different protocol combinations:

Modbus (TCP & RTU) to BACnet (IP or MS/TP) or
BACnet (MS/TP or IP) to Modbus (TCP & RTU) or
BACnet (MS/TP or IP) to ASCII serial & TCP.

Device integration is fast and straightforward thanks to the Modbus device templates, which can be generated, imported locally, or downloaded from a repository, as well as the BACnet device scan feature.
Project configurations can be exported to an Excel or EDE files for backup purposes or to configure additional gateways, thereby reducing commissioning time.
The Intesis MAPS configuration tool also includes a diagnostic tool.
Certificates: UL, BTL, CE, CB, UKPSTI, KC, RCM Mark.
