INTESIS
INKNXRTR0080000

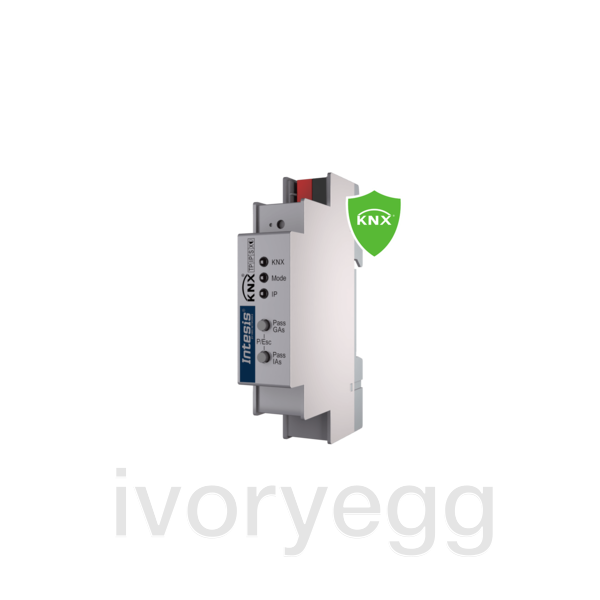

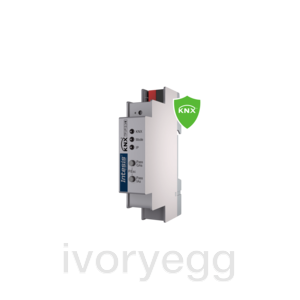

KNX IP Secure router and interface
Product code:
INKNXRTR0080000
KNX TP to KNX IP Secure router - Up to 8 simultaneous KNXnet/IP tunneling connections
As a router, this device enables the coupling of KNX TP lines and areas on a KNX IP Secure backbone. As an interface, the device provides access to the KNX TP bus from any point on the local LAN or remote connection. Up to 8 simultaneous KNXnet/IP tunneling connections are supported.
Description
Features and benefits
KNX IP Secure and KNX Data Secure certified
Prevent security breaches and comply with the highest cybersecurity standards.Line and area coupler functionality
Design flexible KNX topologies, simplify system architecture, and reduce hardware costs.Interface functionality: up to 8 simultaneous KNXnet/IP tunneling connections
Access the KNX bus from anywhere on the network, even remotely.Extended filter table for group addresses implemented
Improve system performance and reduce unnecessary traffic.Telegram buffering: up to 150 telegrams
Prevent telegram loss during high-traffic conditions.No power supply is needed
Reduce installation effort and hardware requirements
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | INTESIS |
| Mounting | DIN Rail |
| Operating voltage | KNX Bus (29VDC) |
