JUNG
3361WW

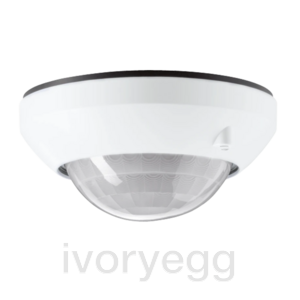

KNX Presence detector standard, white
Product code:
3361WW
Requirement-oriented control of lighting, room thermostats and other electrical loads in interior rooms
Description
Intended use
- Requirement-oriented control of lighting, room thermostats and other electrical loads in interior rooms
- Ceiling mounting on fixed ceilings in flush box according to EN 60670-1 or surface-mounted housing ref.-no.: PM-KAPPE-1 or PM-KAPPE AL-1
Product characteristics
- Integrated bus coupling unit
- 3 PIR sensors
- Detection field 360°
- Integrated brightness sensor
- Deployed as presence detector, motion detector, or for alert operation
- Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Adjuster for manual adjustment of sensitivity
- Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
- Additional characteristics of "Universal" version:
Presence detector function
- Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded
Motion detector function
- Motion detection for passageways in buildings
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and shut-off delay elapsed or brightness threshold exceeded
- After reacting and switching on, the motion detection works independently of the brightness.
Signalling Mode
- Brightness-independent detection of motions in the detection field
- Switch on: After detection of an adjustable number of motions within the set monitoring period
- Switch off: No motion in the detection field and shut-off delay elapsed
Accessories
- protection cage ref.-no.: SK 180-90 WW
- surface-mounted housing ref.-no.: PM-KAPPE-1, PM-KAPPE AL-1
Technical Details
Specification
KNX medium: TP 256
Rated voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: max. 12.5 mA
Connection bus: terminal
Ambient temperature: −5 ... +45 °C
Storage/transport temperature: −25 ... +70 °C
Relative humidity: 5 ... 93 % (no condensation)
Protection class: III
Detection angle: 360°
Range: Ø approx. 20 m (mounting height 3 m)
Brightness sensor
Measuring range: 0 ... 2,000 lx
Detection range: Ø 2 m
Properties
Properties
| Technology | KNX |
| Brand | JUNG |
| Colour/Material | White |
| Mounting | Surface |
| Operating voltage | KNX Bus (29VDC) |
