MDT
AMS-0816.03

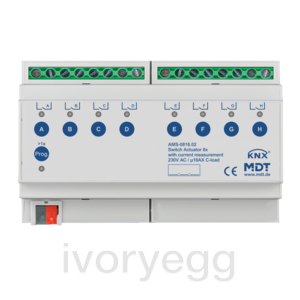

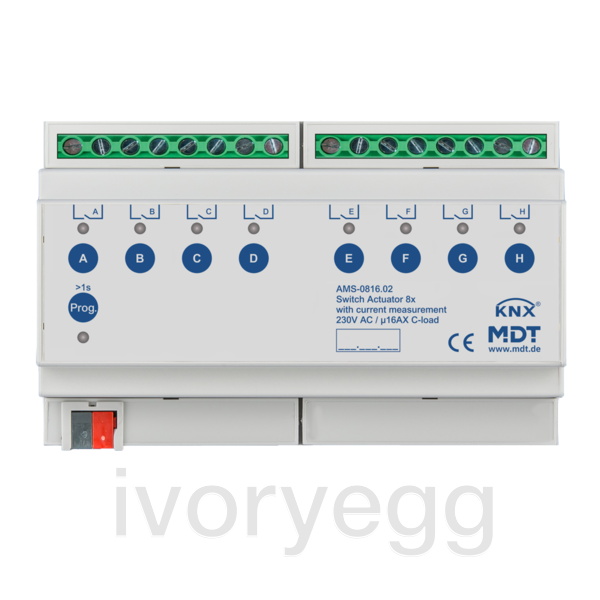

Switch Actuator 8-fold, 8SU MDRC, 16A, 230VAC, C-load, standard, 140_F
Product code:
AMS-0816.03
Switch Actuator 8-fold, 8SU MDRC, 16A, 230VAC, C-load, standard, 140_F
Description
- Comprehensive application
- Integrated True RMS current measurement (current, kWh)
- Current measurement range 10 mA to 16 A
- Integrated energy consumption meter function (Wh/kWh)
- Fast reaction <1s at Master / Slave operation
- Push Button for manual operation and LED indicator for each channel
- Time functions (switch-on / switch-off delay, staircase light function)
- Threshold switch function and Consumption threshold value
- Logical linking of binary data, 8 scenes per channel
- Operating hours meter
- Extended status functions (inverted, cyclic, when locked)
- Priority / forced operation with automatic release time
- Adjustable behaviour on bus voltage failure / -return
- All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals
- 3 years warranty
- Made in Germany
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | MDT |
