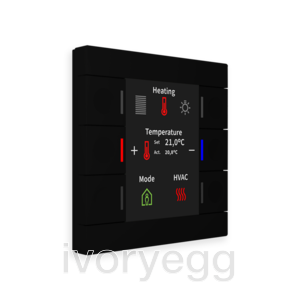

Push Button Smart 86 with temperature sensor, Black matt

Description

With 6 buttons, colored display and RGB status indicator
Suitable as 4/6/8/12-fold push button. Integrated BCU
• Large, colored active display to indicate function and status
• Adjustable background color of the display (white or black)
• Symbols and plain text adjustable for each button/function
• 6 mechanical buttons with finger recess
• Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions)
• Up to 6 functions without level switching
• The buttons can be adjusted for 1 or 2 button operation
• 1 or 2 button operation for switching, dimming, shutters, values
• Short/long button push with 2 objects
• RGB status for each button separate controlable from each level
• Indication of inside/outside temperature and time
• Automatic display brightness via light sensor and day/night object
• Slap function with additional switch channel
• Installation without frame in socket
• Dimensions (W x H): 86mm x 86mm
• Recommended mounting height: 1,10 - 1,25m (as Push Button)
• No additional power supply required
• Integrated bus coupling unit, 3 years warranty.
