MDT
SCN-KP360K301.03

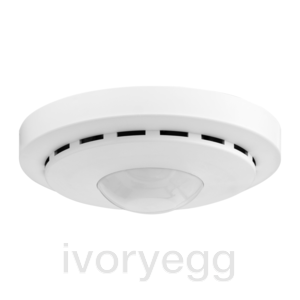

KNX Combi-Presence Detector 360° with room climate sensors, white matt
Product code:
SCN-KP360K301.03
KNX Combi-Presence Detector with constant light control and Air-quality signal light function
Description
- KNX Combi Presence Detector 360° with room climate sensors
- Passive infrared presence detector with 3 sensors for ceiling installation
- Constant light control for up to 3 light strips
- Sensors for CO2 and VOC mixed gas concentration, relative humidity and temperature
- Upper and lower threshold value adjustable for each measured value
- Visualisation of the air quality by means of an internal RGB LED
- Air-quality lamp function adjustable to CO2 or VOC sensor with 4 colour channels and adjustable 1 bit / scene / RGB or HSV output objects
- Detection area 360°, coverage Ø 11 m, presence Ø 5 m
- 1 HVAC and 1 alarm / notification channel
- Adjustable sensitivity and presence sensitivity for day, night and alarm
- Short-time presence to reduce stopping time Block and forced setting functions with release time
- Air-quality control function adjustable as step / PI controller for CO2 or VOC sensor
- Integrated room temperature controller with externally adjustable setpoint and selectable control parameters.
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | MDT |
