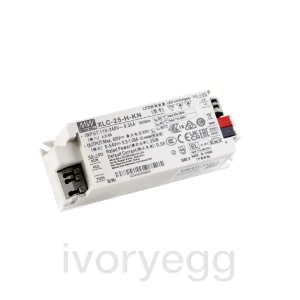

MEANWELL
XLC-25-KN
25W Multiple-Stage Constant Power LED Driver
Product code:
XLC-25-KN
XLC-25-KN Series is a 25W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by ETS database. The integrated KNX interface avoids using the compliated KNX-DALI gateway. Thanks to high efficiency up to 88%, it is able to operate for-25°C ~ 85°C case temperature under free air convection. XLC-25-KN is designed based on latest safety regulations, and provides more flexibility for LED Lighting application.
Description
- Constant power mode output with multiple stage selectable by ETS database
- Plastic housing with class Il and PFC design
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- KNX/EIB protocol, support KNX data secure
- Minimum dimming level 0.5%
- Function:operation hours, power consumption feedback, log/linear curve selection... etc
- 5 years warranty
Technical Details
Properties
Properties
| Technology | KNX |
| Brand | MEANWELL |
