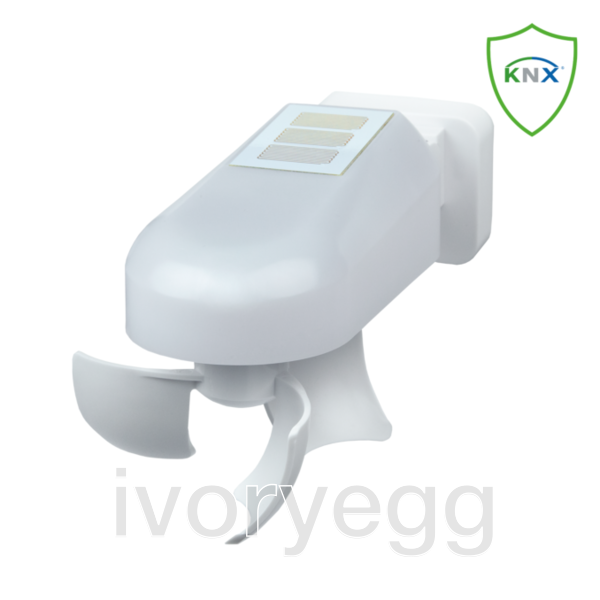

Windancer 2.0 KNX sec Weather Station with Cup Anemometer

Description

• Wind measurement with stable cup anemometer (up to 200 km/h under laboratory conditions), wind measurements in m/s, km/h and Beaufort
• Brightness measurement (current illuminance). Measurement with 3 separate sensors (east, south, west). Separate threshold values for night
• Precipitation detection: The sensor surface is heated, so that only drops and flakes are recognised as precipitation, but not mist or dew. When the rain or snow stops, the sensor is soon dry again and the precipitation warning ends
• Temperature measurement
• KNX Data Secure, extended secure key table (peer-to-peer key table) for > 1,000 keys
• Intuitive configuration interface/menu navigation, context-sensitive help and semantic information (Smart Linking Ready)
• A simple roller shutter and blind control can be implemented using threshold values and associated switching outputs. For this purpose, up to three brightness thresholds are defined for each compass direction (east/south/west)
• All threshold values can be set via parameters or communication objects
• Live data preset: current measured value can be set as a limit value via a communication object (wind, temperature, brightness)
• Location query (Northern/Southern Hemisphere) controls the correct output of east and west brightness values
• 8 AND and 8 OR logic gates, each with 4 inputs. All switching events as well as 16 logic inputs (in the form of communications objects) can be used as inputs for the logic gates. The output of each gate can be configured optionally as 1-bit or 2 x 8-bit
