THEBEN
9070958

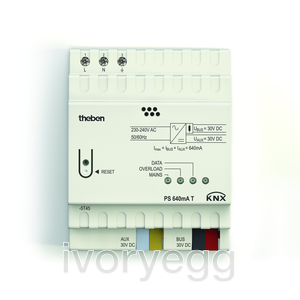

Power supply 640mA T KNX
Product code:
9070958
High-quality components, with increased failsafe performance and long-term stability, minimum power losses of 3.5 W, 4 modules wide with additional 30v DC auxillary connection.
Description
- 640 mA supply voltage
- 30 V DC auxiliary supply
- Power-supplying and monitoring of the KNX system voltage
- Reset key for 20 sec. bus reset
- Continuous short-circuit protection
Technical Details
Specification
| Operating voltage KNX | Bus voltage, ≤12 mA |
| Operating voltage | 230 – 240 V AC |
| Frequency | 50 – 60 Hz |
| Stand-by consumption | ≤0,8 W |
| Width | 4 modules |
| Installation type | DIN rail |
| Type of connection | KNX bus terminal |
| KNX output | 1 line with integrated throttle drive |
| Nominal voltage KNX | 30 V DC, ± 2 V, SELV |
| Nominal current KNX | 640 mA |
| Uninterrupted short-circuit current | max.1,4 A |
| Mains failure bridging time | min.130 ms |
| Ambient temperature | -5 °C … +45 °C |
| Protection class | II according to EN 60 730-1 |
| Type of protection | IP 20 |
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | DIN Rail |
| Output Rating | 640mA |
| IP rating | IP20 |
| Mounting Width | 4MW |
| EAN | 400346 8902295 |
