GIRA
542300

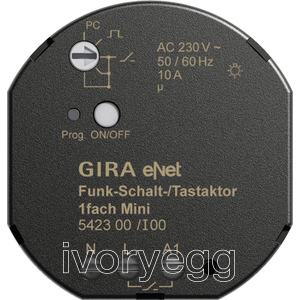

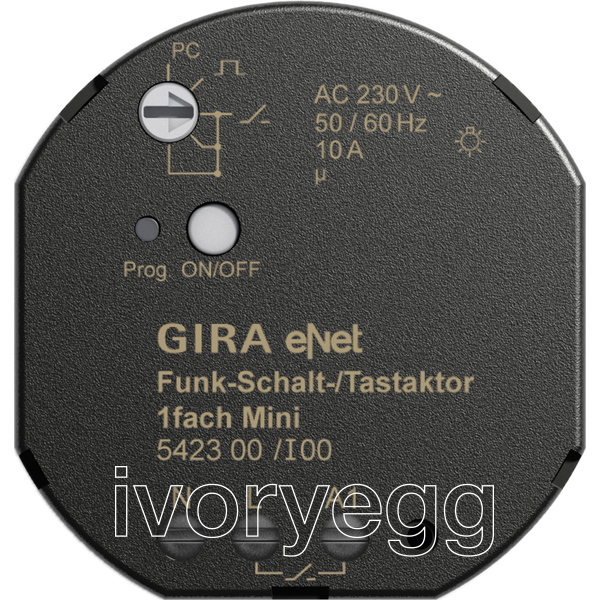

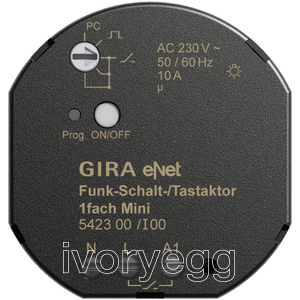

eNet wireless switching/momentary-contact actuator, 1-gang Mini
Product code:
5423 00
The eNet wireless switching/momentary-contact actuator enables switching of lighting.
Description
- Operating modes: Switching actuator or momentary-contact actuator.
- Status feedback to eNet wireless transmitter.
- Scene operation.
- Operating mode buttons: Relay contact stays closed as long as telegrams are being received (max. 60 seconds).
Can be set with eNet server:
- Flashing function.
- Delay time.
- Switch-on/off delay.
- Switch-off pre-warning.
- Minimum switching repeat time.
- Permanent-on, permanent-off.
- Repeater function.
- Localisation of the device.
Technical Details
Specification
Rated voltage: AC 230 V, 50/60 Hz
Standby: max. 0.5 W
Ambient temperature: -25 C to +70 C
Switching capacity AC 230 V: 16 A / AC1
Connected load
- Light bulbs: 2300 W
- HV halogen lamps: 2000 W
- Wound transformer: 1000 VA
- Gira Tronic transformer: 1500 W
- Fluorescent lamps, uncompensated: 920 VA
- LED lamps: typ. 500 W
- Compact fluorescent lamp: typ. 500 W
- Capacitive load: 690 VA (560 µF)
Connections: max. 4 mm_
Wireless frequency: 868.0 to 868.6 MHz
Range (free field): approx. 100 m
Properties
Properties
| Technology | Wireless Control |
| Brand | GIRA |
| Colour/Material | White |
| Design range | GIRA System 55 |
| Insert finish | White |
| Operating voltage | 230v |
| EAN | 4010337774204 |
| inputs_outputs | 1 |
