ABB
SA-M-8.8.1

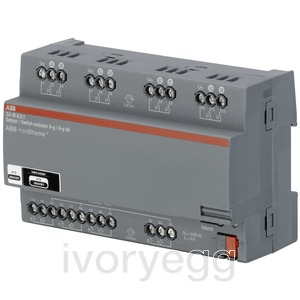

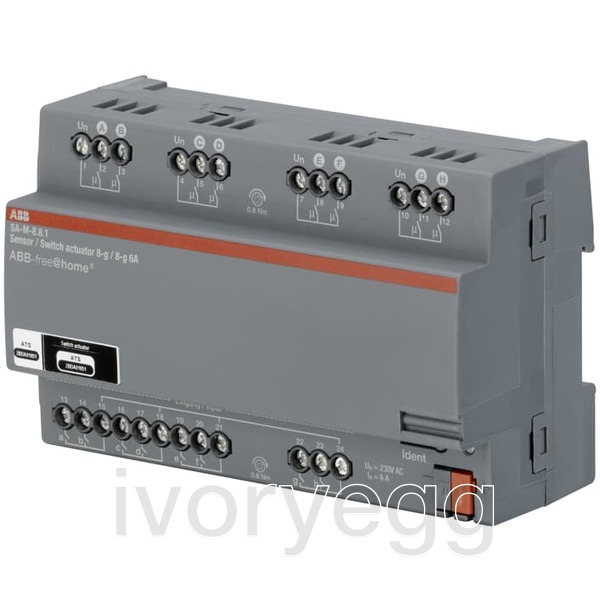

free@home Switch Actuator I/O, 8-fold, 6 A, MDRC
Product code:
2CDG510007R0011
Combination device with 8 binary inputs and 8 switch actuators. Conventional push-buttons or auxiliary contacts can be connected to 8 channels.The information of the contact enquiry can be used for activating ABB-free@home¨ actuators or for recording status information.
The contact polling voltage is made available by the device itself.
Technical Details
Specification
Power supply: 21 ... 30 V DC
Power loss P: Max. 4.0 W
Bus connection: Bus connecting terminal, screwless
Switching voltage: 230 V AC, 50/60 Hz
Switching capacity according to DIN EN 60947-4: 16 A (AC1)
Connecting terminal Output
- Combi-head screw-type terminal (PZ 1)
- 0.2 ... 6 mm2 fine-wire
- 0.2 ... 6 mm2 single-wire
Protection: IP 20 according to EN 60 529
Protection class: II according to EN 61 140
Overvoltage category: III according to EN 60 664-1
Pollution degree: 2 according to EN 60 664-1
Atmospheric pressure: Atmosphere up to 2,000 m
Ambient temperature: -5 C +45 C
Storage temperature: -20 C +70 C
Properties
Properties
| Technology | Other Control |
| Brand | ABB |
