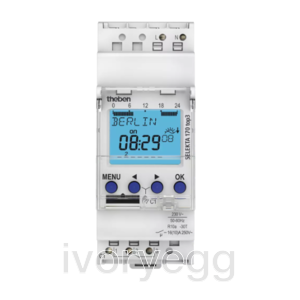

SELEKTA 170 top3 Astronomical time switch with weekly program
Description
- 1 channel
- 56 memory locations
- Programming by app possible
- Safe transfer via optional Bluetooth Low Energy OBELISK top3
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
- 100 % compatible with top2
- ReShape: Made from high-quality, recycled industrial plastic. Increases the product’s sustainability without compromising quality (85% CO2 reduction).
- Astronomical time switch function (automatic calculation of sunrise and sunset times for the whole year)
- Offset for adjusting of sunrise and sunset times
Technical Details
Specification
Operating voltage: 230 V AC
Frequency: 50 - 60 Hz
Width: 2 modules
Installation type: DIN rail
Type of contact: Changeover contact
Switching output: Phase-independent
Opening width: < 3 mm (µ)
Program: Weekly program, Astronomical program
Program functions: ON-OFF
Number of channels: 1
Number of memory locations: 56
Power reserve: 0 years
Switching capacity at 250 V AC, cos φ = 1: 16 A
Switching capacity at 250 V AC, cos φ = 0,6: 10 A
Incandescent/halogen lamp load: 2600 W
Energy saving lamps: 1100 W
LED lamp < 2 W: 50 W
LED lamp 2-8 W: 600 W
LED lamp > 8 W: 600 W
Fluorescent lamp load (conventional) not corrected: 2600 VA
Fluorescent lamp load (conventional) series-corrected: 2600 VA
Fluorescent lamp load (conventional) parallel-corrected: 1300 VA
Inrush current: max. 800 A / 200 µs
Switching capacity min.: ca. 10 mA
Shortest switching times: 1 min
Time accuracy at 25 °C: typical ± 0,25 s/day (quartz)
Time basis: Quartz
Stand-by consumption: ~0.4 W
Type of connection: DuoFix spring terminals
Display: LCD
Keyboards: 4 touch buttons
Housing and insulation material: High-temperature resistant, self-extinguishing thermoplastic
Type of protection: IP 20
Protection class: II according to EN 60 730-1
Ambient temperature: -30°C ... 60°C
Predecessor: 1700100, SELEKTA 170 top2
Properties
Properties
| Technology | 230VAC |
| Brand | THEBEN |
