STEINEL
079505

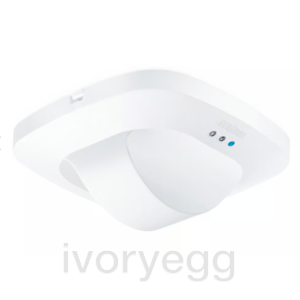

Dual HF KNX Presence detector - in ceiling installation
Product code:
079505
Twice as vigilant! High-frequency corridor sensor Presence Control PRO Dual HF KNX for indoors, ideal for passageways and long corridors, installation height up to 3.5 m, with digital BUS interface for controlling 4 lighting channels and HVAC, DUAL-HF technology that senses movement in two directions for radial detection up to 20 m, detection regardless of temperature, HF-sensor technology also senses movement through glass, wood and stud walls, switches light 'ON' almost instantly.
Description
The Dual HF corridor sensor works with high-frequency technology that's particularly advanced. The system is fitted with 2 sensors, with each covering one corridor direction. Both of them together cover a good 20 metres in walking direction - for complete and reliable detection without blind spots. Tangential reach is deliberately limited to corridor width so as to avoid detecting movements behind closed doors, for instance.
Technical Details
Specification
Application, place: Indoors
Installation: In-ceiling installation
Detection angle: 360 °
Reach, tangential: 20 x 3 m (60 m²)
Mounting height max: 3.50 m
Interconnection via: KNX bus
Properties
Properties
| Technology | KNX |
| Brand | STEINEL |
| Colour/Material | White |
| Finish | White |
| Buscoupler | Integrated |
| IP rating | IP54 |
| Motion Sensor | Ultrasonic + Passive Infra Red |
