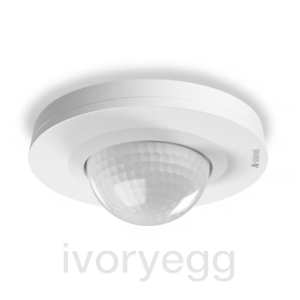

ECO KNX Presence Detector - concealed white
STEINEL PD-24

ECO KNX Presence Detector - concealed white

Product code: 088057
With the new motion and presence detectors of the Eco Plus series, the most common sensor-based standard requirements and everyday scenarios in the contract sector can be successfully and easily implemented. The pragmatic entry-level models form a sound basis for intelligent, energy-saving and environmentally friendly light management, taking into account the prevailing daylight. The high-performance infrared sensors convince with reliable 360° detection that can be adapted as required by means of plug-in cover caps in matching colours. The MD-8 motion detector and the PD-8 presence detector detect movements in a diameter of 8 m. The MD-24 motion detector and the PD-24 presence detector detect movements in a diameter of 8 m. While the MD-24 motion detector and the PD-24 presence detector even have a range of 24 metres. The two presence detectors (PD) are additionally equipped with a presence detection function that covers a presence range of 6 and 7.5 m respectively.
Price (Excluding VAT)
£155.75

Description

  • Series for the common ranges
  • Presence detector with 24 m motion detection and 7.5 m presence detection for integration into a KNX bus system
  • Ideal for large offices, meeting rooms or passageways
  • Easy to mount due to magnetic holder and round design
  • Starting the programming mode from a distance via Smart Remote remote control via app
  • Including pluggable cover caps for detection limitation
  • External approval and measurement according to sensNORM

Technical Details

Specification

Application, place: Indoors
Installation: Concealed wiring
Detection angle: 360 °
Reach, tangential: Ø 24 m (452 m²)
Mounting height max.: 4.00 m
Interconnection via: Cable

Properties

Properties

Technology KNX
Brand STEINEL
Colour/Material White
Mounting Flush
Back Box Round European
Operating voltage KNX Bus (29VDC)
HVAC support Temperature Sensing
Buscoupler Integrated
IP rating IP20
