STEINEL
PD-8

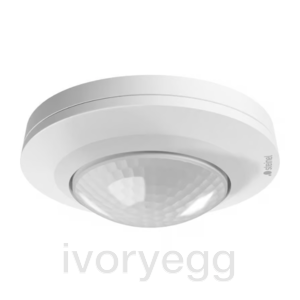

ECO KNX Presence Detector - concealed white
Product code:
087999
With the new motion and presence detectors of the Eco Plus series, the most common sensor-based standard requirements and everyday scenarios in the contract sector can be successfully and easily implemented. The pragmatic entry-level models form a sound basis for intelligent, energy-saving and environmentally friendly light management, taking into account the prevailing daylight. The high-performance infrared sensors convince with reliable 360° detection that can be adapted as required by means of plug-in cover caps in matching colours. The MD-8 motion detector and the PD-8 presence detector detect movements in a diameter of 8 m. The MD-24 motion detector and the PD-24 presence detector detect movements in a diameter of 8 m. While the MD-24 motion detector and the PD-24 presence detector even have a range of 24 metres. The two presence detectors (PD) are additionally equipped with a presence detection function that covers a presence range of 6 and 7.5 m respectively.
Description
- Series for the common ranges
- Presence detector with 8 m motion detection and 6 m presence detection for integration into a KNX bus system
- Ideal for large offices, meeting rooms or passageways
- Easy to mount due to magnetic holder and round design
- Starting the programming mode from a distance via Smart Remote remote control via app
- Including pluggable cover caps for detection limitation
- External approval and measurement according to sensNORM
Technical Details
Specification
Application, place: Indoors
Installation: Concealed wiring
Detection angle: 360 °
Reach, tangential: Ø 8 m (50 m²)
Mounting height max.: 4.00 m
Interconnection via: Cable
Properties
Properties
| Technology | KNX |
| Brand | STEINEL |
| Colour/Material | White |
| Mounting | Flush |
| Back Box | Round European |
| Operating voltage | KNX Bus (29VDC) |
| HVAC support | Temperature Sensing |
| Buscoupler | Integrated |
| IP rating | IP20 |
