THEBEN
Tecta D280i AN

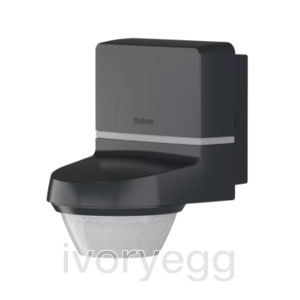

Passive infra-red motion detector for wall installation - anthracite
Product code:
1010111
Description
- 280° detection angle, Ø 24 m
- Detection area digitally adjustable via app, no mechanical adjustment necessary
- Mode selection: Automatic / permanent light / D-MODE
- Can be linked in groups
- Adjustable brightness switching value and switch-off delay
- Area limit via lens attachment
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
- Zero-cross switching for relay-saving switching and high lamp loads
- Test function for checking detection area
Technical Details
Specification
Operating voltage: 230 V AC
Frequency: 50 Hz
Stand-by consumption: <0,4 W
Light measurement: Mixed light measurement
Number of channels: 1
Installation type: Wall installation, Outdoor
Switching capacity: 10 A at 230 V AC, cos φ = 1
Detection angle: 280°
Switching output: Light
Light switch-off delay: 5 s - 30 min
Incandescent/halogen lamp load: 2300 W
Energy saving lamps: 150 W
LED lamp 2-8 W: 600 W
LED lamp > 8 W: 600 W
Lamp types: Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range: ø 24 m
Detection range: Round
Ambient temperature: -25°C ... 55°C
Protection class: II
Type of protection: IP 55
Properties
Properties
| Technology | 230VAC |
| Brand | THEBEN |
