THEBEN
1509205

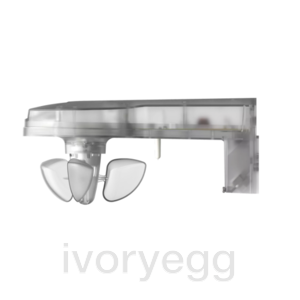

Meteodata 150 basic KNX Combined Sensor / Weather Station
Product code:
1509205
For measuring wind, 4 x brightness, temperature, feels-like temperature, and humidity
Description
- Combined Sensor / Weather Station
- KNX Data Secure
- For measuring wind, 4 x brightness, temperature, feels-like temperature, and humidity
- 14 sun protection channels for controlling independent facades, optionally with temperature and dimming functions.
- 10 universal channels for evaluating individual sensors or logically linking multiple sensors
- Logic channels: AND, OR, XOR
- 4 threshold channels for evaluating external values
- Diagnostic function in ETS and firmware-updatable.
Technical Details
Specification
Operating voltage KNX: Bus voltage, 7.5 mA
Stand-by consumption: <0.1 W
Installation type: Wall installation
Measuring range wind speed: 0 - 40 m/s
Ambient temperature: -25°C ... 60°C
Type of protection: IP 44
Protection class: III
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | Surface |
| Operating voltage | 24VDC |
| IP rating | IP44 |
