THEBEN
1509207

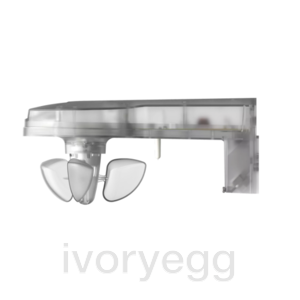

Meteodata 150 KNX Combined Sensor / Weather Station
Product code:
1509207
For measuring wind, rain (heated sensor), 4 x light levels, temperature, feels-like temperature, humidity, air pressure, and global radiation
Description
- Combined Sensor / Weather Station
- KNX Data Secure
- For measuring wind, rain (heated sensor), 4 x light levels, temperature, feels-like temperature, humidity, air pressure, and global radiation
- 14 sun protection channels for controlling independent facades, optionally with temperature and dimming functions, sun-position-dependent shading including shadow edge calculation (height tracking) and louver tracking (horizontal or vertical)
- 10 universal channels for evaluating individual sensors or logically linking multiple sensors
- 4 timer channels with a weekly program and up to 8 switching times per channel
- 2 Astro channels with adjustable sun elevation angle and offset
- Logic channels: AND, OR, XOR
- 4 threshold channels for evaluating external values
- Diagnostic function in ETS and firmware-updatable
Technical Details
Specification
Operating voltage: 110 - 230 V AC
Frequency: 50 - 60 Hz
Operating voltage KNX: Bus voltage 7.5 mA
Stand-by consumption: 0.1 W
Installation type: Wall installation
Measuring range wind speed: 0 - 40 m/s
Ambient temperature: -25°C ... 60°C
Type of protection: IP 44
Protection class: II
Software class: A
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | Surface |
| Operating voltage | 24VDC |
| IP rating | IP44 |
