THEBEN
5400130

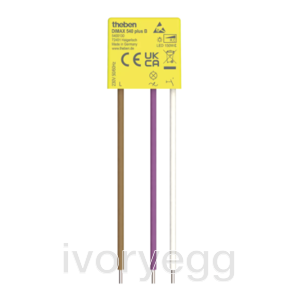

Dimax 540 Plus B Flush-mounted dimmer for R and C loads
Product code:
5400130
Description
- No neutral conductor necessary
- Cable length of up to 100 m possible, also suitable for two-way circuits with larger distances and multiple push buttons
- Easier selection of the optimal dimming value thanks to extended dimming speed of 5 seconds
- Optimised settings for LEDs and incandescent lamps
- Function minimum brightness (10% in state of delivery, adjustable)
- Small design, perfect for retrofitting
- Completely encapsulated electronics
- Temperature cut-off
- Overcurrent cut-off
Technical Details
Specification
Operating voltage: 230 V AC
Frequency: 50 - 60 Hz
Installation type: Flush-mounted
Stand-by consumption: ~0.34 W
Incandescent/halogen lamp load: 150 W
LED lamp 2-8 W: 150 W
Setting: Push-button
Max. cable length: 100 m
Ambient temperature: -10°C ... 45°C
Properties
Properties
| Technology | Standard Electrics |
| Brand | THEBEN |
