THEBEN
8269210

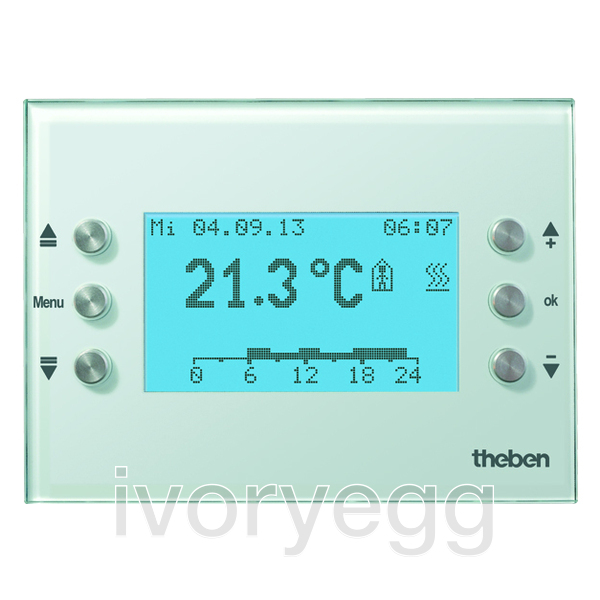

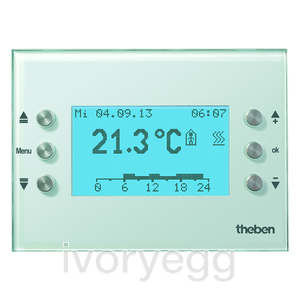

VARIA 826 S WH KNX flush glass display white
Product code:
8269210
deally suited to modern decor, Theben offers the elegant VARIA multifunction display and control unit in flat glass design in a flush-mounted socket. All room functions such as heating, air conditioning, ventilation, lighting and sun protection are easily controlled and operated using VARIA. Up to seven pages can be displayed and, if necessary, adapted to individual requirements.
Description
Whether the room temperature needs to be turned up, the lighting dimmed or the shutters closed early. The relevant weather station shows whether it's stormy or raining and provides more security for shading and blinds.
The easy to use thermostat with its weekly program provides for efficient heating, ventilation and air conditioning. At the touch of a button you can leaf through seven subject pages and alter the values using +/- buttons or just switch functions ON or OFF. The illuminated, easy to read clear text display in 8 mm characters ensures safe use for young and old alike.
- Multi-functional display with room thermostat
- Glass front in white
- Freely configurable for displaying and controlling functions e.g. light settings, sun protection systems
- Backlit display and integrated time switch
- For control and regulation of heating, fan coils, air conditioning systems
- Up to 7 different display pages
- Automatic summer/winter time adjustment with power reserve
- Controls up to 8 rooms via own temperature profiles
- Weekly time switch with 8 channels with up to 3 different statuses, e.g. for light, shutters, fans etc.
- 3 heating programs
- Alternative continuous or on/off control
- Operation modes: comfort, stand-by, temperature reduction at night, frost protection
- Weather data from Theben weather stations can be displayed
- Free choice of programming via the ETS without plug-in
- Installation in flush-mounted socket
Technical Details
Specification
- Operating Voltage: 230VAC 50HZ
- Power Consumption: .4W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 15mA
- Display: Display with 132 x 72 points (8 lines with various functions) e.g. title, switching, dimming, blinds/shutters, % value, HVAC, counter value, temperature, 2-byte value, 8/16 bit counter value etc.
- Display Lighting: LCD with white backlighting, dimmable
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
