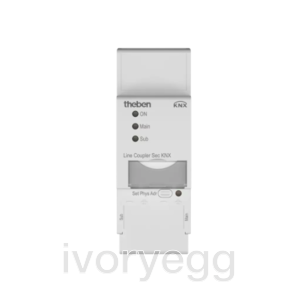

Line Coupler Secure KNX
Description
- Area coupler for connecting the KNX backbone (main line) to an area
line (subline)
- Line coupler for connecting an area line (main line) to a line (subline)
- Segment coupler for extending a line (main line) with additional
segments (subline), only available with ETS 6
- Filter functions for group telegrams and physically addressed telegrams
can be configured
- Filtering, forwarding and blocking of encrypted and unencrypted
telegrams regardless of commissioning as a KNX Data Secure product
- Secure proxy for secure data exchange between secure devices and
devices that are not secured via KNX Secure, only available with ETS 6
- Project planning and commissioning of the device from ETS 4 onwards
when used as an area coupler, line coupler or line amplifier. With ETS 6
(recommendation from 6.1.0 onwards), additional use as a segment
coupler and use of the Secure Prox.
Technical Details
Specification
- Operating Voltage KNX 10mA
- Operating Voltage 24VDC
- Width 2 modules
- Installation Type DIN rail
- Type of connection KNX Bus Terminal
- Protection class 111
- Type of protection IP 20
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | DIN Rail |
| Operating voltage | KNX Bus (29VDC) |
| IP rating | IP20 |
| Mounting Width | 2MW |
| EAN | 400346 8904008 |
| KNX Secure | Yes |
