THEBEN
H6

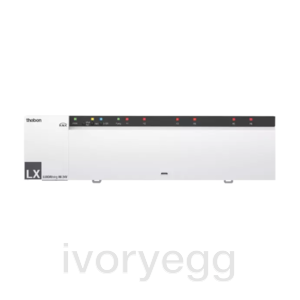

LUXORliving 24V heating actuator for controlling thermal actuators
Product code:
4800441
LUXORliving heating actuator for controlling thermal actuators
Description
- LUXORliving heating actuator for controlling thermal actuators
- Option of channel-based actuator control: 24 V DC switching or 0–10 V DC continuous
- Integrated relay for demand-based control of heating circuit pump
- Each channel has a temperature control
- Can be installed directly in the heating circuit distributor
- Screwless terminal technology
- Integrated power supply for max. 12 thermal actuators
- Continuous or switching actuating value can be selected
- Integrated valve protection - Manual operation on device
- Download of the installation software LUXORplug at https://www.luxorliving.co.uk/for-professionals/software-and-apps/
Technical Details
Specification
Operating voltage KNX: <10 mA
Operating voltage: 230 – 240 V AC 50 – 60 Hz
Frequency: 50 – 60 Hz
Stand-by consumption: <1 W
Number of channels: 6
Switching output: 5 A, 240 V AC potenzialfrei (Pumpe)
Ambient temperature: -5°C ... 50°C
Type of protection: IP 20
Protection class: II according to EN 60 669
Properties
Properties
| Technology | Other Control |
| Brand | THEBEN |
