THEBEN

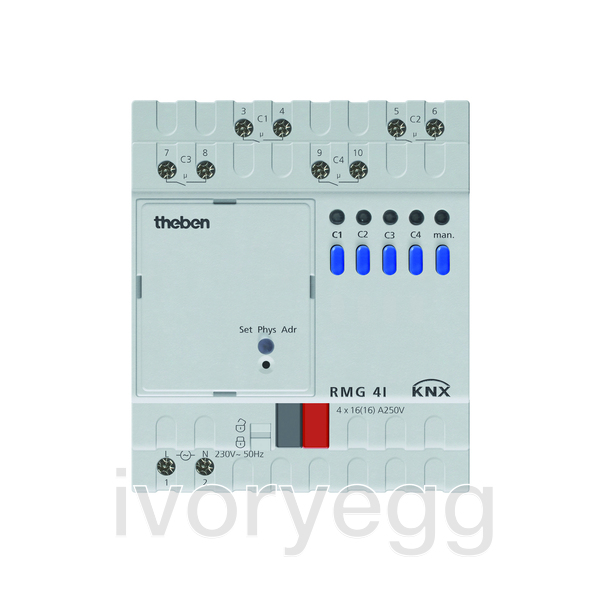

RMG 4 I KNX

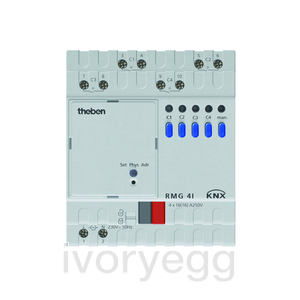

KNX 4-way C load switching actuator MIX2
Product code:
4930210
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating, Binary Inputs and Blind Actuators.
Description
- 4-way C load switching actuator MIX2, For higher lamp loads
- With current recognition
- Base module MIX2
- Can be upgraded to maximum of 12 channels
- Up to two extension modules MIX or MIX2 can be connected to one base module
- Device and KNX bus module can be swapped independently of each other, Removable KNX bus module enables devices to be changed without reprogramming
- Manual set-up and use of switching actuators is possible without KNX bus module
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
- Adjustable characteristics: e.g. switching, delayed switching, pulse function
- Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
- Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
- Logical links: e.g. lock, AND, release, OR
Technical Details
Specification
- Operating Voltage: 110 - 240 VAC
- Power Consumption: 1.3W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 4mA
- Outputs: 4
- Output Rated Voltage: 240VAC
- Type of Contact: NO contact, Potential Free
- Current Rating: 16A (cos =1), 10A (cos=0.6)
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | DIN Rail |
| Operating voltage | KNX Bus (29VDC) |
| Outputs | 4 |
| IP rating | IP20 |
| Mounting Width | 4MW |
| EAN | 400346 8493083 |
