THEBEN 4910274

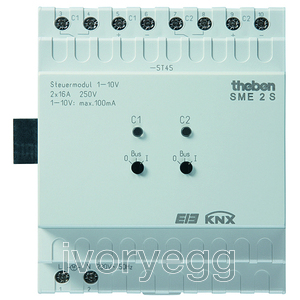

SME 2 S KNX extension module MIX 1

Product code: 4910274

The Mix series is a range of interconnecting modules with Base and extension units. The Extension units are forward compatible so CAN be used with MIX 2 Base Modules.

Description

2-way 1-10 V control unit MIX
Extension module MIX
For upgrading to maximum of 6 channels
Free combination of switches, dimming, blinds and heating control as well as binary inputs
Switching and dimming of lighting circuits in combination with electronic ballasts (EBs and ballasts LED)
1-10V inputs and one switch output (relay contact) per channel
LED switching status display for each channel
Manual switch with On/Off/Bus settings (also without bus voltage)
With crossover switching to spare the relay contact

MIX Extensions are compatible with MIX2 Base Module

Technical Details

Specification

Operating Voltage: 230 VAC
Power Consumption: 1.6W
Bus Voltage: KNX Bus 21...30VDC
Bus Current Consumption: 10mA
Outputs: 2 (Relay and 1-10v Control)
Relay Output Rated Voltage: 230VAC
Relay Output Rated Curent Rating: 16A (cos =1), 10A (cos=0.6)
1-10V Max Input: 100mA
Signal Duration: Continuous
Max Cable Length: 500m

Properties

Technology	KNX
Brand	THEBEN
Mounting	DIN Rail
Operating voltage	230VAC
Outputs	2
IP rating	IP20
Mounting Width	4MW
EAN	400346 8491744
