THEBEN
4910273

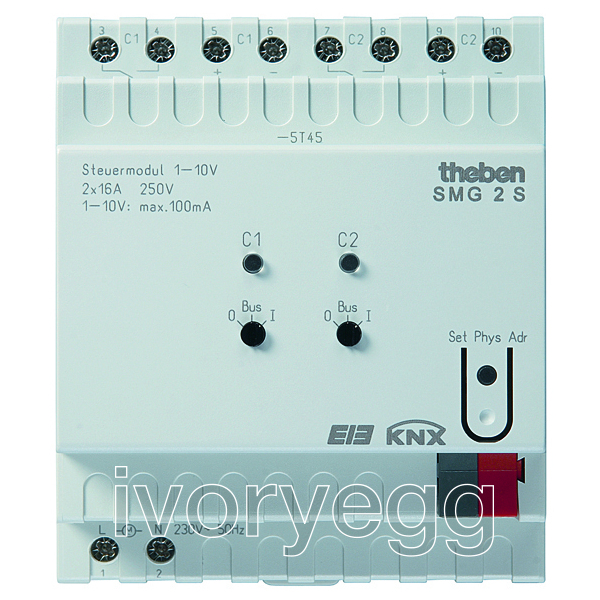

SMG 2 S KNX 2-way 1-10 V control unit, base module MIX
Product code:
4910273
The Mix series is a range of interconnecting modules with Base and extension units. The Base units are not forward compatible so CAN'T be used with MIX 2 Extensions.
Description
- 2-way 1-10 V control unit MIX
- Base module MIX
- Can be upgraded to maximum of 6 channels
- Free combination of switches, dimming, blinds and heating control as well as binary inputs
- Switching and dimming of lighting circuits in combination with electronic ballasts (EBs and ballasts LED)
- 1-10V inputs and one switch output (relay contact) per channel
- LED switching status display for each channel
- Manual switch with On/Off/Bus settings (also without bus voltage)
- With crossover switching to spare the relay contact
Only compatible with MIX extensions not MIX2
MIX Extensions are compatible with MIX2 Base Modules
Technical Details
Specification
- Operating Voltage: 230 VAC
- Power Consumption: 1.6W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 10mA
- Outputs: 2 (Relay and 1-10v Control)
- Relay Output Rated Voltage: 230VAC
- Relay Output Rated Curent Rating: 16A (cos =1), 10A (cos=0.6)
- 1-10V Max Input: 100mA
- Signal Duration: Continuous
- Max Cable Length: 500m
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | DIN Rail |
| Operating voltage | 230VAC |
| Outputs | 2 |
| IP rating | IP20 |
| Mounting Width | 4MW |
| EAN | 400346 8491737 |
