WEINZIERL
830.1

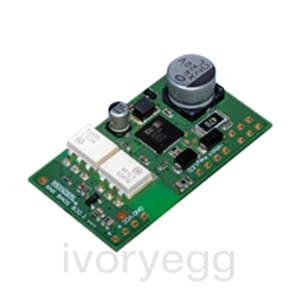

KNX BAOS Module - secure
Product code:
5499
BAOS Modules from Weinzierl are a cost effective way to make devices KNX-capable. The modules serve as a serial interface to KNX. The compact KNX BAOS Module 830.1 secure as pin compatible successor to the proven module 820 provides support for up to 1,000 data points, KNX and BAOS Security. The module includes a certified KNX stack (System B) and can be configured with the ETS. A generic ETS database allows a quick start. Individual ETS entries can be created.
Description
The benefit of the Object Server in the KNX BAOS Modules is the logical decoupling of the application from the KNX communication. The application can access the values of the communication objects without any knowledge of KNX telegram formats or KNX addresses used in the current installation. The KNX BAOS Module 830.1 secure module offers up to 1000 data points.
Technical Details
Specification
- Dimensions (L x W): 44 x 25 mm
- External supply for isolated UART 3.3….5 V DC
- Bus current consumption: 4 mA
- External pins: 2.54mm pin header KNX Bus +/-, Key for programming mode, LED for programming mode, Power supply GND/VCC, UART TX/RX
- Galvanic isolation
Properties
Properties
| Technology | KNX |
| Brand | WEINZIERL |
| EAN | 4260262772084 |
