WEINZIERL
USB Interface 312.1

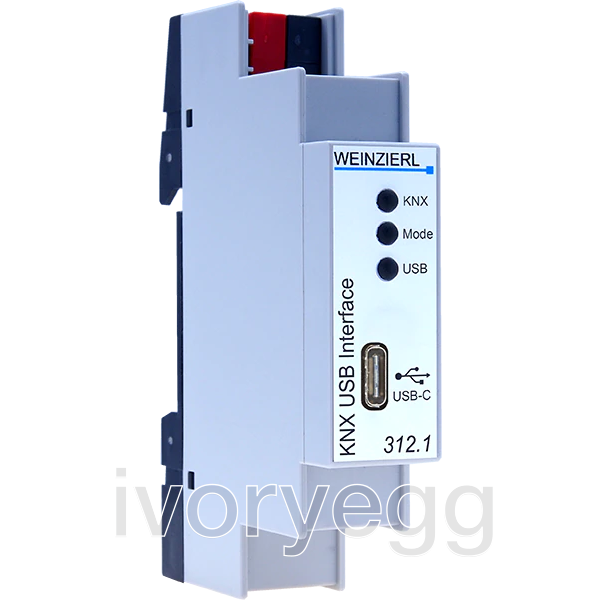

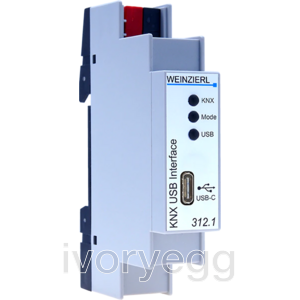

KNX USB Interface 312.1
Product code:
5501
Compact USB data interface between a PC or laptop and the KNX bus.
The device can be used as a programming interface for ETS®.
Description
- Support of KNX Long Frames
- Support of Weinzierl BAOS Protocol V2 secure
- Status display via 3 LEDs
- Connections: KNX, USB type C
- For DIN rail, width 1 unit (18 mm).
Technical Details
Specification
Mechanical Data
- Housing: plastic
- DIN rail mounted device, width: 1 TE
Indicators
- LED (multicolor) for USB
- LED (multicolor) for KNX
KNX
- Medium TP
- Long Frame
- Object Server: BAOS V2
- Device model: System B
Power supply
- USB < 15 mA
- KNX < 3mA
Connectors
- KNX connector
- USB connector type B
Compatibility
- ETS (Engineering Tool Software) ETS3 or later
- Falcon Driver (KNX Association)
- kDrive (Weinzierl)
Properties
Properties
| Technology | KNX |
| Brand | WEINZIERL |
| Mounting | DIN Rail |
